SP6203 低噪声300mA CMOS LDO调节器
The SP6200 and SP6203 are CMOS Low Dropout (LDO) regulators designed to meet a broad range of applications that require accuracy, speed and ease of use. These LDOs offer extremely low quiescent current which only increases slightly under load, thus providing advantages in ground current performance over bipolar LDOs. The LDOs handle an extremely wide load range and guarantee stability with a 1μF ceramic output capacitor. They have excellent low frequency Power Supply Rejection Ratio (PSRR), not found in other CMOS LDOs and thus offer exceptional Line Regulation. High frequency PSRR is better than 40dB up to 400kHz. Load Regulation is excellent and temperature stability is comparable to bipolar LDOs. An enable feature is provided on all versions.
技术特性
- 低压差：内嵌0.6Ω PMOS功率调整管
- 高精度输出电压：温度范围内，误差小于2%；
- 稳定的500mA 输出电流: SP6205
- 超低噪音输出:12µVRMS带10nF旁通电路
- 2.2uF陶瓷电容即可稳定输出
- 低静态电流45μA
- 非常低的对地电流：在500mA时为350μA
- 节能断电模式，功耗小于1uA
- 快速开/关功能60us
- 快速瞬态响应
- 过流保护及过热关断保护
- 很好的负载及线性调整度: 0.07/0.04%
- 出色的PSRR:67dB<1KHz
- 工业标准5引脚SOT-23及8引脚DFN封装
- 固定输出电压：2.5V，2.7V，2.8V，2.85V，3.0V及3.3V
- 输出电压可调
技术指标
| 输出电流(mA) |
300 |
| 最低输入电压(V) |
2.7 |
| 最高输入电压(V) |
6 |
| 静态电流(µA) |
45 |
| 精确性 |
2% |
| 漏失电压 |
180 |
| 输出电压1.2V |
False |
| 输出电压1.5V |
否 |
| 输出电压1.8V |
否 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
是 |
| 输出电压2.85V |
是 |
| 输出电压2.8V |
是 |
| 输出电压3.0V |
是 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
否 |
| 输出电压可调 |
是 |
应用领域 APPLICATION
- 移动电话
- 笔记本/掌上电脑
- 电池供电的设备
- 消费者/个人电子产品
- SMPS后置调节器
- DC-to-DC模块
- 医疗器材
- 数据电缆
- 寻呼机

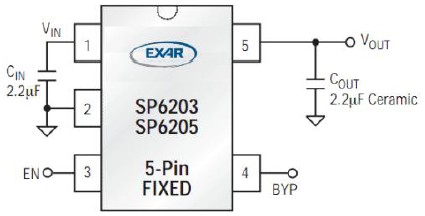

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
