SP6205 低噪音500mA互补金属氧化物半导体(CMOS)低压差(LDO)调节器
The SP6205 is a low power voltage regulator. This device is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. The SP6205 features very low quiescent current (100μA Typ.) and very low dropout voltage. This includes a tight initial tolerance of 1% max and very low output temperature coefficient, making the SP6205 useful as a lowpower voltage reference. The error flag output feature is used as power-on reset for warning of a low output voltage, due to a falling voltage input of batteries. Another feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. The SP6205 is offered in 3-pin TO-220 package, SO-8 (same pin out as SPX2951), SOT-223, surface mount 3-Pin TO-252, 3-Pin TO-263 packages and 5-Pin TO-263. The regulator output voltage (of the 8-pin SO-8) may be pin-strapped for a 3.3V and 5.0V or programmed from 1.24V to 20V with an external pair of resistors. Look for SPX2951 for 150mA and SPX2954 for 250mA applications.
技术特性
- 低压差：内嵌0.6Ω PMOS功率调整管
- 高精度输出电压：温度范围内，误差小于2%；
- 稳定的500mA 输出电流: SP6205
- 超低噪音输出:12µVRMS带10nF 旁通电路
- 2.2uF陶瓷电容即可稳定输出
- 低静态电流45μA
- 非常低的接地电流：在500 mA时为350μA
- 节能断电模式，功耗小于1uA
- 快速开/关功能：60us
- 快速瞬态响应
- 限流及过热关断保护
- 很好的负载及线性调整度: 0.07/0.04%
- 出色的PSRR:67dB<1KHz
- 工业标准的5引脚SOT-23及8引脚DFN封装
- 固定输出电压：2.5V，2.7V，2.8V，2.85V，3.0V及3.3V
- 输出电压可调
技术指标
| 输出电流(mA) |
500 |
| 最低输入电压(V) |
2.7 |
| 最高输入电压(V) |
6 |
| 静态电流(µA) |
45 |
| 精确性 |
2% |
| 漏失电压 |
300 |
| 输出电压1.2V |
False |
| 输出电压1.5V |
否 |
| 输出电压1.8V |
否 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
是 |
| 输出电压2.85V |
是 |
| 输出电压2.8V |
是 |
| 输出电压3.0V |
是 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
否 |
| 输出电压可调 |
是 |

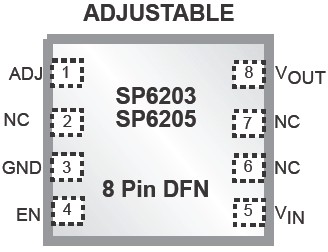

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
