SP6260 150mA RF Ultra Low Dropout Regulator
The SP6260 is a positive voltage regulator with very low dropout voltage, output noise and ground current (750μA at 100mA). VOUT has a tolerance of less than 1% and is temperature compensated. Fixed output voltages 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 5.0V and an adjustable version are available in a small 5-pin SOT-23 package. Other key features include zero off-mode current, reverse battery protection, thermal shutdown and current limit. The SP6260 is an excellent choice for use in batterypowered applications, and where power conservation is desired such as: cellular/ cordless telephones, radio control systems, and portable computers.
技术特性
- Ultra Low Output Noise: 30uVrms
- No Bypass Capacitor
- Small 1uF Input and Output Capacitors
- 150mA Guaranteed Output Current
- 1.5V to 3.3V Output Voltage Option
- High Output Voltage Accuracy: ±2%
- Low Dropout Voltage: 150mV (100mA)
- Enable Pin
- Low Quiescent Current at 25uA
- Low Standby Current at 0.1uA
- Excellent Line Transient Response and Load Transient Response
- Excellent Line Regulation: 4mV Typical
- Excellent Load Regulation: 12mV Typical
- High Ripple Rejection: 70dB (10kHz)
- 2V to 6V Wide Input Voltage Range
- Small Lead Free, RoHS Compliant SOT23-5L Package
应用领域 APPLICATION
- Camera Flash LED Driver
- Wireless Mouse
- PDA's
- Pagers
- Medical Monitors
- Handheld Portable Devices
- MP3 Players
|
技术指标
| 输出电流(mA) |
150 |
| 最低输入电压(V) |
2 |
| 最高输入电压(V) |
6 |
| 静态电流(µA) |
25 |
| 精确性 |
2% |
| 漏失电压 |
165 |
| 输出电压1.2V |
False |
| 输出电压1.5V |
Yes |
| 输出电压1.8V |
Yes |
| 输出电压2.5V |
Yes |
| 输出电压2.8V |
Yes |
| 输出电压3.0V |
Yes |
| 输出电压3.3V |
Yes |
订购信息 Ordering Information
| 器件型号 |
封装编码 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
立刻购买 |
申请样片 |
| SP6260AEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|
|
| SP6260BEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|
|
| SP6260CEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|
|
| SP6260DEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|
|
| SP6260EEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|
|
| SP6260FEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|
|
| SP6260GEK-L/TR |
SOT-23-5 |
|
-40 |
85 |
Active |
|

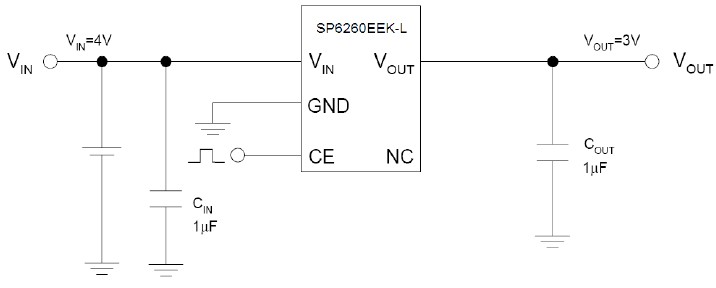

功能框图 Functional Block Diagram
|
