SP6265 Dual Low-Dropout CMOS Voltage Regulator

ApplicationsThe SP6265 dual, low dropout, linear regulators operate up to 5.5V input and deliver up to 150mA/150mA output current per regulator. It has a bypass pin option which allows users to decouple the bandgap reference for reducing the output noise. Low dropout voltage and low quiescent current (70μA typ.) make them ideal for battery powered applications. The SP6265 is available with a wide variety of standard voltage options and can be trimmed to 1.5% accuracy. For protection purposes, SP6265 has a thermnal shutdown feature to prevent device failure under the"worst" operating conditions.

技术特性
  • Very Low Dropout Voltage
  • Guaranteed 150ma for each Output
  • Accurate to Within 1.5% for Both Outputs
  • Typical 70µa Quiescent Current
  • Over-Temperature Shutdown
  • Noise Reduction Bypass Capacitor
  • Power-Saving Shutdown Mode
  • Available in Lead free, RoHS Compliant Packaging: 6Pin TSOT-26 and 8Pin TDFN
技术指标
输出电流(mA) 150
最低输入电压(V) 2
最高输入电压(V) 5.5
静态电流(µA) 70
精确性 1.5
漏失电压 350
输出电压1.2V False
输出电压1.8V Yes
输出电压2.5V Yes
输出电压2.85V Yes
输出电压2.8V Yes
输出电压3.0V Yes
输出电压3.3V Yes
输出电压可调 No
应用领域 APPLICATION
  • FeaturesCellular
  • Phones Palm / Notebook
  • Battery Powered Equipment
  • Handheld Devices
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
SP6265AEK1-L/TR -40 85 Active
SP6265BEK1-L/TR -40 85 Active
SP6265FEK1-L/TR -40 85 Active
SP6265GEK1-L/TR -40 85 Active
SP6265HEK1-L/TR -40 85 Active
SP6265JEK1-L/TR -40 85 Active
SP6265KEK1-L/TR -40 85 Active
SP6265LER-L/TR -40 85 Active
SP6265MER-L/TR -40 85 Active

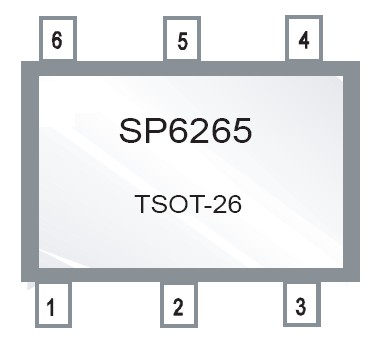

功能框图 Functional Block Diagram

SP6265 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SP6265 数据资料DataSheet下载:pdf Rev.V2 2 页
