SPX1587 3A低漏失线性调节器(LDO）
The SPX1587 is a 3A Low Dropout Regulator with extremely low dropout voltage. The adjustable version requires only two external resistors to set the output voltage. The fixed version has a preset output of 3.3V, 2.8V or 2.5V and does not require any external resistors. The SPX1587 features a low dropout of 400mV(Typ.) and offers fast transient response. This device is suitable for Pentium applications requiring 2.8V, 2.5V from 3.3V ATX power supplies, where low current input voltage 1V greater than the output voltage is needed. With an external sense pin the load regulation is less than 1mV. This device is an excellent choice for the use in powering low voltage microprocessors that require a lower dropout, fast transient response to regulate from 3.3V and 5V supplies. The SPX1587 is also an excellent choice as a post regulator for switching supply applications.
技术特性
- 稳定的3A输出电流
- 3端电压可调节或固定为1.5V, 1.8V, 2.5V, 3.3V及5.0V
- 低静态电流
- 低压差在3A时为1.1V
- 线性调节率:0.1%
- 负载调节率:0.1%
- 可在10uF 陶瓷电容下工作
- 过电流及热保护
- 有以下封装:TO-252, TO-220, 及TO-263
- 于工业规格的LT1085/LT1585一致/兼容
技术指标
| 输出电流(mA) |
3000 |
| 最低输入电压(V) |
2.5 |
| 最高输入电压(V) |
10 |
| 静态电流(µA) |
5000 |
| 精确性 |
1%, 2% |
| 漏失电压 |
1100 |
| 输出电压1.2V |
False |
| 输出电压1.5V |
是 |
| 输出电压1.8V |
否 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
否 |
| 输出电压2.85V |
否 |
| 输出电压2.8V |
否 |
| 输出电压3.0V |
否 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
是 |
| 输出电压可调 |
是 |
应用领域 APPLICATION
- Low Dropout Voltage 500mV at 3A Full Load Current
- Adjustable Ouput Down to 1.25V from ATX Power Supply
- Extremely Tight Load and Line Regulation
- Standard 5-Terminal Low Cost TO-26

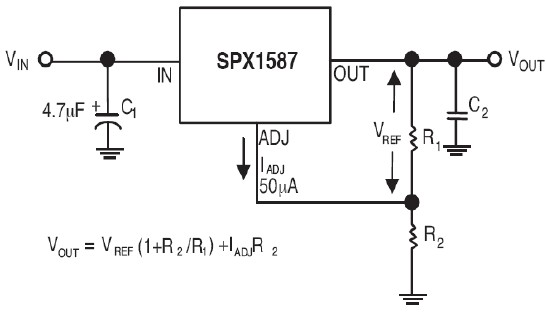

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
| 器件型号 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
申请样片 |
| SPX1587R-L/TR |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-1-5 |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-1-5/TR |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-1-8 |
|
-40 |
125 |
EOL |
|
| SPX1587R-L |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-1-8/TR |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX1587T-2-8 |
|
|
|
返修 |
|
| SPX1587T-2-5 |
|
-40 |
125 |
运行 |
|
| SPX1587T-2-5/TR |
|
-40 |
125 |
运行 |
|
| SPX1587R-L-2-5/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-1-8/TR |
|
|
|
运行 |
|
| SPX1587R-L-3-3 |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-3-3/TR |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX1587R-L-5-0/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX1587R-2-5 |
|
|
|
OBS |
|
| SPX1587R-3-3 |
|
|
|
OBS |
|
| SPX1587T-5-0 |
|
|
|
运行 |
|
| SPX1587T-2-85/TR |
|
|
|
返修 |
|
| SPX1587R-1-8 |
|
|
|
OBS |
|
| SPX1587R-L-3-0 |
|
-40 |
125 |
OBS |
|
| SPX1587T-2-85 |
|
|
|
返修 |
|
| SPX1587T-2-8/TR |
|
|
|
返修 |
|
| SPX1587T |
|
|
|
OBS |
|
| SPX1587R-3-3/TR |
|
|
|
运行 |
|
| SPX1587R-5-0 |
|
|
|
运行 |
|
| SPX1587R-L-3-0/TR |
|
-40 |
125 |
OBS |
|
| SPX1587R-1-8/TR |
|
|
|
运行 |
|
| SPX1587R-2-5/TR |
|
|
|
运行 |
|
| SPX1587T/TR |
|
-40 |
125 |
运行 |
|
| SPX1587T-1-5/TR |
|
|
|
运行 |
|
| SPX1587R-5-0/TR |
|
|
|
运行 |
|
| SPX1587T-1-8 |
|
|
|
OBS |
|
| SPX1587T-5-0/TR |
|
|
|
运行 |
|
| SPX1587U-2-85 |
|
|
|
返修 |
|
| SPX1587U-2-8 |
|
|
|
返修 |
|
| SPX1587U-L |
|
-40 |
125 |
EOL |
|
| SPX1587U-3-3 |
|
-40 |
125 |
运行 |
|
| SPX1587U |
|
|
|
运行 |
|
| SPX1587U-L-5-0 |
|
-40 |
125 |
Active |
|
| SPX1587U-2-5 |
|
|
|
运行 |
|
| SPX1587U-1-5 |
|
|
|
运行 |
|
| SPX1587U-L-1-8 |
|
-40 |
125 |
EOL |
|
| SPX1587U-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX1587U-L-1-5 |
|
-40 |
125 |
EOL |
|
| SPX1587U-L-3-3 |
|
-40 |
125 |
返修 |
|
| SPX1587U-L-2-8 |
|
-40 |
125 |
EOL |
|
| SPX1587U-L-2-85 |
|
-40 |
125 |
EOL |
|
| SPX1587U-1-8 |
|
|
|
OBS |
|
| SPX1587U-5-0 |
|
|
|
OBS |
|
| SPX1587U-L-3-0 |
|
-40 |
125 |
OBS |
|
| SPX1587T-L-5-0/TR |
|
-40 |
125 |
运行 |
|
| SPX1587T-L-1-8 |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-1-8/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-2-5/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-L/TR |
|
-40 |
125 |
运行 |
|
| SPX1587T-L |
|
-40 |
125 |
运行 |
|
| SPX1587T-L-1-5/TR |
|
-40 |
125 |
运行 |
|
| SPX1587T-L-1-5 |
|
-40 |
125 |
运行 |
|
| SPX1587T-L-2-8 |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-5-0 |
|
-40 |
125 |
运行 |
|
| SPX1587T-L-2-8/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-2-85 |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-2-85/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-3-3 |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-3-3/TR |
|
-40 |
125 |
EOL |
|
| SPX1587T-L-3-0 |
|
-40 |
125 |
OBS |
|
| SPX1587T-L-3-0/TR |
|
-40 |
125 |
OBS |
|
| SPX1587AR-L-1-5/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-2-5 |
|
-40 |
125 |
运行 |
|
| SPX1587AR-L-1-5 |
|
-40 |
125 |
EOL |
|
| SPX1587AR-L-1-8 |
|
-40 |
125 |
EOL |
|
| SPX1587AR-L-1-8/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AR-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX1587AR-L-2-5/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-2-5/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AT-3-3 |
|
-40 |
125 |
运行 |
|
| SPX1587AT-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AT-5-0/TR |
|
|
|
运行 |
|
| SPX1587AT-2-85/TR |
|
|
|
返修 |
|
| SPX1587AT-2-8 |
|
|
|
返修 |
|
| SPX1587AT-2-8/TR |
|
|
|
返修 |
|
| SPX1587AT-2-85 |
|
|
|
返修 |
|
| SPX1587AR-1-5/TR |
|
|
|
运行 |
|
| SPX1587AR-L-3-3 |
|
-40 |
125 |
EOL |
|
| SPX1587AR-L-3-3/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AR-2-5/TR |
|
|
|
运行 |
|
| SPX1587AR-1-8/TR |
|
|
|
返修 |
|
| SPX1587AR-1-8 |
|
|
|
返修 |
|
| SPX1587AR/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AR-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX1587AR-L-5-0/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AR |
|
-40 |
125 |
运行 |
|
| SPX1587AR-L-3-0 |
|
-40 |
125 |
OBS |
|
| SPX1587AR-L-3-0/TR |
|
-40 |
125 |
OBS |
|
| SPX1587AR-1-5 |
|
-40 |
125 |
运行 |
|
| SPX1587AR-5-0/TR |
|
|
|
运行 |
|
| SPX1587AR-L |
|
-40 |
125 |
运行 |
|
| SPX1587AR-L/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AT-1-5 |
|
|
|
OBS |
|
| SPX1587AR-3-3 |
|
-40 |
125 |
运行 |
|
| SPX1587AR-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AT-1-8/TR |
|
|
|
OBS |
|
| SPX1587AT-L |
|
-40 |
125 |
运行 |
|
| SPX1587AU-L-1-8 |
|
-40 |
125 |
EOL |
|
| SPX1587AU-L/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AU-L-1-5 |
|
-40 |
125 |
EOL |
|
| SPX1587AU-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX1587AU-2-8 |
|
|
|
返修 |
|
| SPX1587AU-2-5 |
|
-40 |
125 |
运行 |
|
| SPX1587AU-L |
|
-40 |
125 |
运行 |
|
| SPX1587AU-2-85 |
|
|
|
返修 |
|
| SPX1587AU-L-2-8 |
|
-40 |
125 |
EOL |
|
| SPX1587R-1-5 |
|
|
|
运行 |
|
| SPX1587AU-L-2-85 |
|
-40 |
125 |
EOL |
|
| SPX1587AU-L-3-0 |
|
-40 |
125 |
EOL |
|
| SPX1587R-1-5/TR |
|
|
|
运行 |
|
| SPX1587AU-L-3-3 |
|
-40 |
125 |
EOL |
|
| SPX1587R/TR |
|
|
|
运行 |
|
| SPX1587AU-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX1587R |
|
-40 |
125 |
运行 |
|
| SPX1587AU-1-8 |
|
|
|
返修 |
|
| SPX1587AT-L-1-5 |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-1-5/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-1-8 |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-2-8 |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-2-5 |
|
-40 |
125 |
运行 |
|
| SPX1587AT-L-1-8/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AT-L-2-8/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-2-85 |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-2-85/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-3-3 |
|
-40 |
125 |
运行 |
|
| SPX1587AT-L-5-0/TR |
|
-40 |
125 |
EOL |
|
| SPX1587AT-L-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX1587AT-L-2-5/TR |
|
-40 |
125 |
运行 |
|
