SPX2815 1.5A低漏失线性调节器（LDO)
The SPX2815 is a low power positive-voltage regulator designed to satisfy moderate power requirements with a cost effective, small footprint solution. This device is an excellent choice for use in battery-powered applications and portable computers. The SPX2815 features very low quiescent current and a low dropout voltage of 1.1V at a full load. As output current decreases, quiescent current flows into the load, increasing efficiency. SPX2815 is available in adjustable or fixed 2.5V, 3.3V and 5.0V output voltages. The SPX2815 is offered in several 3-pin surface mount packages: TO-252, TO-220 and TO-263. An output capacitor of 10μF ceramic or tantalum provides unconditional stability.
技术特性
- 1.5A稳定输出电流
• 3端电压为可调节或者固定为2.5V, 3.3V and 5.0V
• 低静态电流
• 在1.5A时低压差为 1.1V
• 0.1%的线性调节及 0.1%的负载调节
• 用10uF 陶瓷电容即可稳定工作
• 过量电流及热保护
• 有以下封装可选: TO-252, TO-220, 及 TO-263
• 与有工业标准的 LT1086/ LT1586一致
技术指标
| 输出电流(mA) |
1500 |
| 最低输入电压(V) |
2.5 |
| 最高输入电压(V) |
10 |
| 静态电流(µA) |
4000 |
| 精确性 |
1%, 2% |
| 漏失电压 |
1100 |
| 输出电压1.2V |
False |
| 输出电压1.5V |
否 |
| 输出电压1.8V |
否 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
否 |
| 输出电压2.85V |
否 |
| 输出电压2.8V |
否 |
| 输出电压3.0V |
否 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
是 |
| 输出电压可调 |
是 |
应用领域 APPLICATION
- Desktop PCs, Servers
- Powering VGA and Sound Cards
- Cordless Phones
- Battery Chargers
- Adjustable Power Supplies Portable Instrumentation
- SMPS Post-Regulator
- Constant Current Regulators

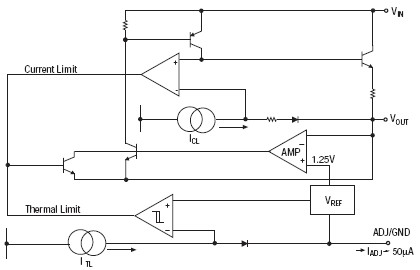

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
| 器件型号 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
申请样片 |
| SPX2815R-L-5-0 |
|
-40 |
125 |
运行 |
|
| SPX2815R-L-5-0/TR |
|
|
|
运行 |
|
| SPX2815R-L-2-5/TR |
|
|
|
运行 |
|
| SPX2815R-L-3-3/TR |
|
|
|
运行 |
|
| SPX2815T |
|
|
|
运行 |
|
| SPX2815T-2-5 |
|
|
|
运行 |
|
| SPX2815T-2-5/TR |
|
|
|
运行 |
|
| SPX2815R-3-3 |
|
|
|
OBS |
|
| SPX2815T/TR |
|
|
|
运行 |
|
| SPX2815R-L-2-5 |
|
|
|
OBS |
|
| SPX2815R-2-5/TR |
|
|
|
运行 |
|
| SPX2815R-3-3/TR |
|
|
|
运行 |
|
| SPX2815R/TR |
|
|
|
运行 |
|
| SPX2815R-2-5 |
|
|
|
运行 |
|
| SPX2815R-5-0 |
|
|
|
运行 |
|
| SPX2815R-L-3-3 |
|
|
|
OBS |
|
| SPX2815R-L/TR |
|
|
|
运行 |
|
| SPX2815R-5-0/TR |
|
|
|
运行 |
|
| SPX2815R-L |
|
-40 |
125 |
运行 |
|
| SPX2815U-2-5 |
|
|
|
运行 |
|
| SPX2815U-3-3 |
|
|
|
运行 |
|
| SPX2815T-L-5-0 |
|
|
|
运行 |
|
| SPX2815T-L-5-0/TR |
|
|
|
运行 |
|
| SPX2815U-5-0 |
|
|
|
运行 |
|
| SPX2815U-L-3-3 |
|
|
|
返修 |
|
| SPX2815U-L-5-0 |
|
|
|
返修 |
|
| SPX2815U-L |
|
|
|
运行 |
|
| SPX2815U-L-2-5 |
|
|
|
返修 |
|
| SPX2815T-L-3-3/TR |
|
|
|
运行 |
|
| SPX2815T-5-0 |
|
|
|
运行 |
|
| SPX2815T-5-0/TR |
|
|
|
运行 |
|
| SPX2815T-3-3 |
|
|
|
OBS |
|
| SPX2815T-3-3/TR |
|
|
|
运行 |
|
| SPX2815T-L |
|
-40 |
125 |
运行 |
|
| SPX2815T-L-2-5/TR |
|
|
|
运行 |
|
| SPX2815T-L-3-3 |
|
-40 |
125 |
运行 |
|
| SPX2815T-L/TR |
|
-40 |
125 |
运行 |
|
| SPX2815T-L-2-5 |
|
-40 |
125 |
运行 |
|
| SPX2815R |
|
|
|
运行 |
|
| SPX2815AR-L-2-5/TR |
|
-40 |
125 |
EOL |
|
| SPX2815AR-5-0/TR |
|
|
|
运行 |
|
| SPX2815AR-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX2815AR-L-3-3 |
|
-40 |
125 |
EOL |
|
| SPX2815AR-L-3-3/TR |
|
-40 |
125 |
EOL |
|
| SPX2815AR-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX2815AT-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX2815AR-L |
|
-40 |
125 |
运行 |
|
| SPX2815AT-L-2-5/TR |
|
-40 |
125 |
EOL |
|
| SPX2815AU-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX2815AR-L/TR |
|
-40 |
125 |
运行 |
|
| SPX2815AU-L |
|
-40 |
125 |
EOL |
|
| SPX2815AR/TR |
|
|
|
运行 |
|
| SPX2815AR-L-5-0/TR |
|
-40 |
125 |
EOL |
|
| SPX2815AU-L-2-5 |
|
-40 |
125 |
EOL |
|
| SPX2815AU-L-3-3 |
|
-40 |
125 |
EOL |
|
| SPX2815AR-2-5 |
|
|
|
运行 |
|
| SPX2815AR-3-3 |
|
-40 |
125 |
运行 |
|
| SPX2815AR-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX2815AT-L-5-0 |
|
-40 |
125 |
EOL |
|
| SPX2815AR-2-5/TR |
|
|
|
运行 |
|
| SPX2815AT-L-5-0/TR |
|
-40 |
125 |
EOL |
|
| SPX2815AT-L-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX2815AU |
|
-40 |
125 |
运行 |
|
| SPX2815AT-2-5 |
|
|
|
OBS |
|
| SPX2815AT-L-3-3 |
|
-40 |
125 |
运行 |
|
| SPX2815-5-0/TR |
|
-40 |
125 |
OBS |
|
| SPX2815AR-5-0 |
|
|
|
OBS |
|
| SPX2815AU-2-5 |
|
|
|
运行 |
|
| SPX2815AU-3-3 |
|
-40 |
125 |
运行 |
|
| SPX2815-3-3 |
|
-40 |
125 |
OBS |
|
| SPX2815AT-3-3 |
|
-40 |
125 |
运行 |
|
| SPX2815AT |
|
-40 |
125 |
运行 |
|
| SPX2815AT/TR |
|
-40 |
125 |
运行 |
|
| SPX2815AT-L |
|
-40 |
125 |
运行 |
|
| SPX2815AT-L/TR |
|
-40 |
125 |
运行 |
|
| SPX2815AT-3-3/TR |
|
-40 |
125 |
运行 |
|
| SPX2815AT-5-0/TR |
|
|
|
运行 |
|
