XRD5408 CCD Image Digitizers with CDS, PGA and 12-Bit A/D
The XRD5408 is a low power, voltage output digital-to-analog converter (DAC) for +5V power supply operation. The part draws only 50 micro Amps of supply current and is available in both an 8-lead PDIP and SOIC package. The XRD5408 has a three wire serial port with an output allowing the user to daisy chain several of them together. The serial port will support both MicrowireTM, SPITM and QSPITM standards.
技术特性
- 8-Bit Resolution
- Operates from a Single 5V Supply
- Buffered Voltage Output: 13μs Typical Settling Time
- 240μW Total Power Consumption (typ)
- Guaranteed Monotonic Over Temperature
- Flexible Output Range: 0V to VDD
- 8 Lead SOIC and PDIPS Package
- Power On Reset
- Serial Data Output for Daisy Chaining
- Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
- Digital Calibration
- Battery Operated Instruments
- Remote Industrial Devices
- Cellular Telephones
- Motion Control
|
技术指标
| 解析度(Bits) |
8 |
| 数位类比转换器数量 |
1 |
| I orV/FIX orMUL |
V/M 2Q |
| Buff orDbl Buff |
B |
| 并行(P) / 串行(S) |
S |
| 输出电压范围 |
4.5 to 5.5v |
| 3V VerAvail |
Yes |
| 封装 |
PDIP-8, SOIC-8 |
订购信息 Ordering Information
| 器件型号 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
立刻购买 |
申请样片 |
| XRD5408AID-F |
|
-40 |
85 |
Active |
|
|
| XRD5408AIDTR-F |
|
-40 |
85 |
Active |
|
|
| XRD5408AIP-F |
|
-40 |
85 |
Active |

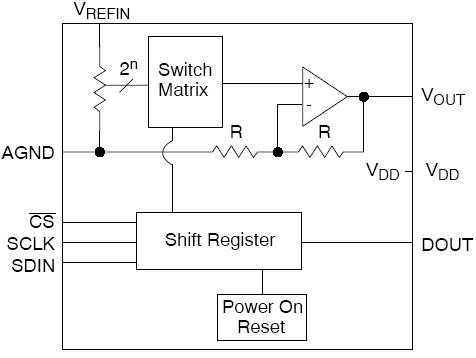

功能框图 Functional Block Diagram
|
