XRD8785 CCD Image Digitizers with CDS, PGA and 12-Bit A/D

The XRD8785 is an 8-bit Analog-to-Digital Converter. Designed using an advanced 5V CMOS process, this part offers excellent performance, low power consumption and latch-up free operation. This device uses a two-step flash architecture to maintain low power consumption at high conversion rates. The input circuitry of the XRD8785 includes an on-chip S/H function which allows the user to digitize analog input signals between AGND and AVDD. Careful design and chip layout have achieved a low analog input capacitance. This reduces "kickback" and eases the requirements of the buffer/amplifier used to drive the XRD8785. The designer can choose the internally generated reference voltages by connecting VRB to VRBS and VRT to VRTS, or provide external reference voltages to the VRB and VRT pins. The internal reference generates 0.6 V at VRB and 2.6 V at VRT. Providing external reference voltages allows easy interface to any input signal range between AGND and AVDD. This also allows the system to adjust these voltages to cancel zero scale and full scale errors, or to change the input range as needed

技术特性
  • 8-Bit Resolution
  • 20MHz Sampling Rate
  • DNL = +1/2 LSB, INL = +1 LSB (typ)
  • Internal S/H Function
  • Single Supply: 5 V
  • VIN DC Range: 0V to VDD
  • VREF DC Range: 1V to VDD
  • Low Power: 85mW typ. (excluding reference
  • Latch-Up Free
  • ESD Protection: 1500V Minimum
  • 20 Pin Package Available: XRD8775
  • 3V Version: XRD87L85
  • Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
  • Digital Color Copiers
  • Cellular Telephones
  • CCDs and Scanners
  • Video Capture Boards
技术指标
解析度(Bits) 8
速度 15-MSPS
最高 P P Con. (mW) 75mW
频道数量 1
跟踪 / 保持 Yes
电压参考 1 to 5V
mP 总线 P=并行 S= 串行 8, P
3V VerAvail Yes
封装 PDIP-24, SOIC-24, SSOP-24
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRD8785AID-F -40 85 Active
XRD8785AIDTR-F -40 85 Active

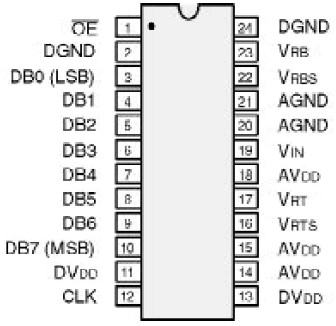

功能框图 Functional Block Diagram

XRD98L63 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRD8785 数据资料DataSheet下载:pdf Rev.V2 2 页
