XRD9818 3-Channel 16-Bit Linear CCD/CIS Sensor Signal Processor

The XRD9818 is a fully integrated, high-performance analog signal processor/digitizer specifically designed for use in 3-channel/2-channel/1-channel CCD/CIS document imaging applications. Each channel of the XRD9818 includes a Correlated Double Sampler (CDS), Offset adjustment, Programmable Gain Amplifier (PGA). After the gain and offset adjustments the analog inputs are sequentially sampled and digitized by a 16-bit A/D converter. The digital output data is available in 8 or 4-bit wide multiplexed format. The analog front-end can be configured for use in CCD or CIS data acquisition applications. The CDS mode of operation supports both line and pixel-clamp modes and can be used to achieve significant reduction in system 1/f noise and CCD reset clock feed-through. Five programmable clamp levels are available in CCD mode to adjust for CCD signal swing and reset pulse size. For CIS mode there are 3 selectable reference options, two internally generated and one external applied reference. Two PGA ranges, programmable through the serial port, help interface the XRD9818 to CCD imagers that have either a 3V or 2V output swings. The range of 1x to 5x is used for 3V inputs and the range of 1.5x to 7.5x is used for 2V inputs. Each channel has an offset range of -180mV to 180mV (1.4mV/step) for fine adjustment and an additional -100mV to 200mV (100mV/step) of gross offset adjustment to correct for any system offsets.

技术特性
  • 16-Bit (XRD9818) A/D Converter
  • Triple-Channel, 4MSPS Color Scan Mode
  • Single-Channel, 8MSPS Monochrome Scan Mode
  • Multiplexed 8-Bit or 4-Bit Output Data Formats
  • Triple Correlated Double Sampler
  • Triple 9-Bit Programmable Gain Amplifier
  • Two Programmable Gain Ranges
  • Triple 10-Bit Offset Compensation DAC
  • -280mV to +380mV Offset Compensation
  • 28-pin TSSOP Package
  • Internal Voltage Reference
  • 3V Operation with 5V Tolerant inputs
  • Low Power CMOS: 190mW @ 3.3V (typ), Power Down 1mW (typ)
  • Pb-Free, RoHS Compliant Versions Offered
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRD9818ACG-F 0 70 Active
XRD9818ACGTR-F 0 70 Active



技术指标
频道数量 3
CDS(CCD Input) Yes
S&H/T&H(CIS Input) Yes
PGA解析度 9-Bit
抵消范围 10-Bit
A/D解析度 16-Bit
A/D速度 8-MSPS
电压供应 3.3V
电力(Typ) 190mW
封装 TSSOP-28
应用领域 APPLICATION
  • 48-Bit Color Scanners
  • High-performance CCD or CIS Color Scanners
  • Multifunction Peripherals
  • Film Scanners

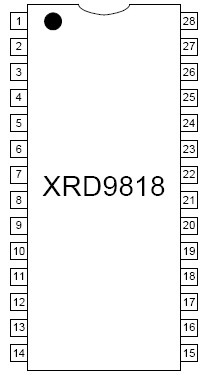

功能框图 Functional Block Diagram

XRD9818 功能框图
