XRT75L03D 3-Channel E3/DS3/STS-1 Line Interface Unit with SONET Desynchronizer

The XRT75L03D is a Three-Channel fully integrated Line Interface Unit (LIU) and Jitter Attenuator for E3/DS3/STS-1 applications. It incorporates three independent Receivers, Transmitters and Jitter Attenuators in a single 128-Lead QFP package.

技术特性
  • Receiver:
    • On chip Clock and Data Recovery circuit for high input jitter tolerance
    • Meets E3/DS3/STS-1 Jitter Tolerance Requirements
    • Detects and Clears LOS as per G.775
    • Receiver Monitor mode handles up to 20 dB flat loss with 6 dB cable attenuation
    • On chip B3ZS/HDB3 encoder and decoder that can be either enabled or disabled
    • On-chip Clock Synthesizer generates the appropriate rate clock from a single frequency Crystal
    • Provides low jitter clock outputs for either E3, DS3 or STS-1 rates in ITU-T G.823_1993 for E3
    • Pb-Free, RoHS Compliant Versions Offered
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRT75L03DIV-F -40 85 Active



技术指标
频道数量 3
数据传输速率(s) DS3, E3, STS-1
Clk Rec Yes
短途/长途 n/a
温度.范围 Ind.
OpPwr Sup/Max Cur 3V ±5%
封装 TQFP-120
应用领域 APPLICATION
  • E3/DS3 Access Equipment
  • STS1-SPE to DS3 Mapper
  • DSLAMs
  • Digital Cross Connect Systems
  • CSU/DSU Equipment
  • Routers
  • Fiber Optic Terminals

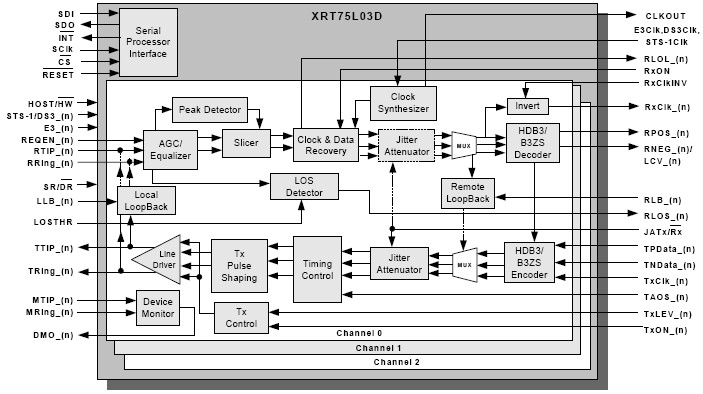

功能框图 Functional Block Diagram

XRT75L03D 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
XRT75L03D 数据资料DataSheet下载:pdf Rev.V2 2 页
