XRT75R06D 6-Channel DS3/E3 Line Interface Unit (LIU) with Jitter Attenuator, SONET Desynchronizer and R³ Technology™

The XRT75R06D is a six-channel DS3/E3 Line Interface Unit (LIU) with Jitter Attenuator with R3 TechnologyTM. It incorporates an independent receiver for each channel, transmitter and jitter attenuator, and supports E3 (34.368.Mbps), DS3 (44.736Mbps) and STS-1 (51.84 Mbps) modes of operation. The device has a differential receiver, which provides a high noise interference margin capable of receiving data from cables of over 1,000 feet or up to 12dB of cable attenuation. It contains an onboard Pseudo Random Binary Sequence (PRBS) generator and detector with the ability to insert and detect single bit error. This function can be used for diagnostic purposes. The device meets jitter and wander specifications described in the T1.105.03b, and ETSI TBR-24, and is compliant with jitter transfer templates outlined in ITU G.751, G.752 and G.755. It also provides a serial microprocessor interface as well as hardware mode for configuration and control.

技术特性

Receiver:
- R3 TechnologyTM (Reconfigurable, Relayless, Redundancy)
- On chip Clock and Data Recovery for high-input jitter tolerance
- Meets DS3/E3/STS-1 Jitter Tolerance Requirements
- Detects and Clears LOS as per G.775
Transmitter:
- Tri-state Transmit output capability for redundancy applications
- Compliant with Bellcore GR-499, GR-253 and ANSI T1.102 Specification for transmit pulse
- Transmitters can be turned on or off
Jitter Attenuator
- On-chip advanced crystal-less Jitter Attenuator for each channel
- 16 02 32 bits selectable FIFO size
- Meets ETSI TBR Jitter Transfer Requirements
Control and Diagnostics:
- Parallel Microprocessor Interface for control ands configuration
- Each Channel supports Analog, Remote and Digital Loop-backs
- Single 3.3V ± 5% power supply
- Pb-Free, RoHS Compliant Versions Offere

技术指标

频道数量	6
数据传输速率(s)	DS3, E3, STS-1
Clk Rec	Yes
短途/长途	n/a
温度.范围	Ind.
OpPwr Sup/Max Cur	3V ±5%
封装	BGA-217
Recommended

应用领域 APPLICATION

Digital Access and Cross Connect Systems
Routers
DSLAMs
Fiber Optic Terminals

订购信息 Ordering Information

器件型号	有害物质限制	最低温度	最高温度	状态	立刻购买	申请样片
XRT75R06DIB-F		-40	85	Active
XRT75R06DIB		-40	85	Active

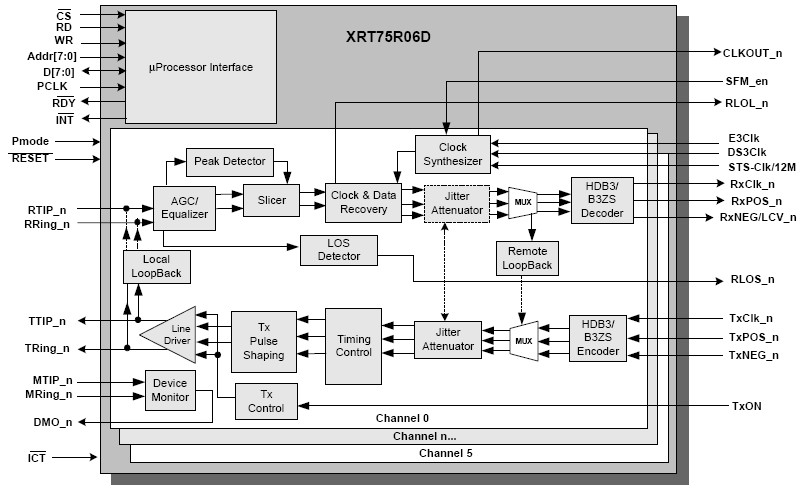

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
XRT75R06D 数据资料DataSheet下载:pdf	Rev.V2	2 页
