RA03M4547MD RoHS Compliance , 450-470MHz 38dBm 7.2V, 2 Stage Amp. For PORTABLE RADIO

The RA03M4547MD is a 38 dBm output RF MOSFET Amplifier Module for 7.2 volt portable radios that operate in the 450 to 470 MHz range.

技术特性 Features
  • Enhancement-Mode MOSFET Transistors
    (IDD≅0 @ VDD=7.2V, VGG=0V)
  • Pout>38dBm @ VDD=7.2V, Pin=19dBm
    Idq1=30mA(Vgg1adjust.),Idq2=1A(Vgg2 adjust.) ,
  • ηT>34% @ VDD=7.2V, Pout=38dBm (Pin adjust.),
    Idq1=30mA(Vgg1 adjust.),Idq2=1A(Vgg2 adjust.)
  • IMD3<-25dBc @ VDD=7.2V, Pout (average) =35dBm(Pin adjust.)
    Two tone test at 1KHz separation
    Idq1=30mA(Vgg1 adjust.),Idq2=1A(Vgg2 adjust.)
  • Broadband Frequency Range: 450-470MHz
  • Low-Power Adjust. Current IGG=1mA (typ) at VGG=3.5V
  • Module Size: 30 x 10 x 5.4 mm
订购信息 Ordering Information
  • RA03M4547MD
  • RA03M4547MD-101 Antistatic tray,50 modules/tray
功能框图 Functional Block Diagram

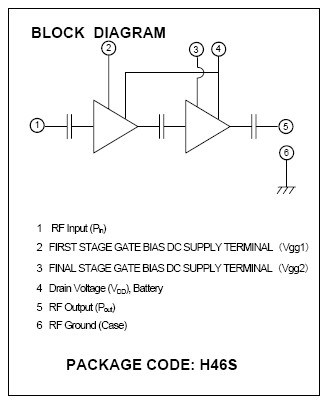

RA03M4547MD 功能图框


应用技术支持与电子电路设计开发资源下载 版本信息 大小
RA03M4547MD 数据资料DataSheet下载:PDF Rev.V2 2 页
