RA07M4047M RoHS Compliance , 400-470MHz 7W 7.2V, 2 Stage Amp. For PORTABLE RADIO

The RA07M4047M is a 7-watt RF MOSFET Amplifier Module for 7.2-volt portable radios that operate in the 400- to 470-MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. Without the gate voltage (VGG=0V), only a small leakage current flows into the drain and the RF input signal attenuates up to 60 dB. The output power and drain current increase as the gate voltage increases. With a gate voltage around 2.5V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 3V (typical) and 3.5V (maximum). At VGG=3.5V, the typical gate current is 1 mA. This module is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.

技术特性 Features

Enhancement-Mode MOSFET Transistors
(IDD≅0 @ VDD=7.2V, VGG=0V)
Pout>7W @ VDD=7.2V, VGG=3.5V, Pin=50mW
ηT>40% @ Pout=6.5W (VGG control), VDD=7.2V, Pin=50mW
Broadband Frequency Range: 400-470MHz
Low-Power Control Current IGG=1mA (typ) at VGG=3.5V
Module Size: 30 x 10 x 5.4 mm
Linear operation is possible by setting the quiescent drain
current with the gate voltage and controlling the output power
with the input power

订购信息 Ordering Information

RA07M4047M
RA07M4047M-101 Antistatic tray,50 modules/tray

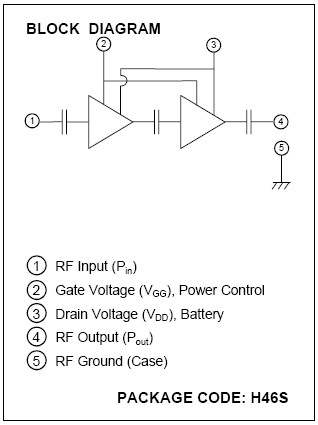

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
RA07M4047M 数据资料DataSheet下载：PDF	Rev.V2	2 页
