RA30H4452M RoHS Compliance , 440-520MHz 30W 12.5V MOBILE RADIO

The RA30H4452M is a 30-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 440- to 520-MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. Without the gate voltage (VGG=0V), only a small leakage current flows into the drain and the RF input signal attenuates up to 60 dB. The output power and drain current increase as the gate voltage increases. With a gate voltage around 4V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 4.5V (typical) and 5V (maximum). At VGG=5V, the typical gate current is 1 mA. This module is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.

技术特性 Features

Enhancement-Mode MOSFET Transistors(IDD0 @ VDD=12.5V, VGG=0V)
Pout>30W, T>40% @ VDD=12.5V, VGG=5V, Pin=50mW
Broadband Frequency Range: 440-520MHz
Low-Power Control Current IGG=1mA (typ) at VGG=5V
66 x 21 x 9.8 mm
Linear operation is possible by setting the quiescent drain current with
the gate voltage and controlling the output power with the input power

订购信息 Ordering Information

RA30H4452M
RA30H4452M-101 Antistatic tray,10 modules/tray

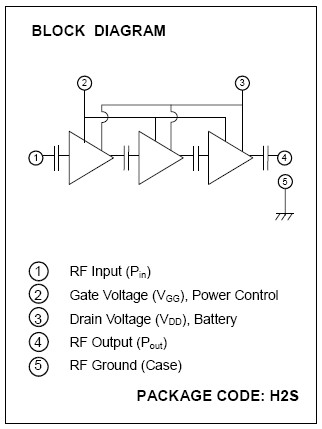

功能框图 Functional Block Diagram
