RD02MUS2 RoHS Compliance,Silicon MOSFET Power Transistor 175MHz,520MHz,2W

RD02MUS2 is a MOS FET type transistor specifically designed for VHF/UHF RF power amplifiers applications. This device has an internal monolithic zener diode from gate to source for ESD protection.

技术特性 Features
  • High power gain:
    Pout>2W, Gp>16dB
    @Vdd=7.2V,f=175MHz, 520MHz
  • High Efficiency: 65%typ. (175MHz)
  • High Efficiency: 65%typ. (520MHz)
  • Integrated gate protection diode
应用领域 APPLICATION

For output stage of high power amplifiers In VHF/UHF band mobile radio sets.

订购信息 Ordering Information
  • RD02MUS2

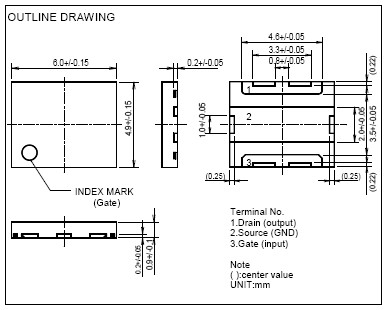

外观尺寸图 Outline Drawing

RD02MUS2 外观尺寸图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
RD02MUS2 数据资料DataSheet下载：PDF Rev.V2 2 页
