AAT1401 Serial LED Driver with Filtered PWM and 32-Step S2C Dimming Control

The AAT1401 is a step-up single channel LED driver with an input voltage range of 2.7V to 5.5V. The wide input voltage range, small solution size, advanced dimming features and high efficiency is suitable for LED backlight solutions for single cell Li-ion based equipment. A precision, high voltage current sink maintains the maximum LED current set by an external resistor from 10 to 31mA. The high switching frequency supports ultra small, low cost filtering components. Two dimming controls are available; 32 dimming steps using the S2Cwire™ interface, and filtered PWM control. The frequency range of the PWM dimming extends up to 100 kHz eliminating audible noise and suitable for CABC (Content Adaptive Brightness Control) applications. The device includes over-temperature protection and programmable over-voltage protection and recovers automatically when the faults are removed. The AAT1401 is available in a 10-pin wafer-level chip scale package (WLCSP) and is rated over the -40°C to +85°C temperature range.

技术特性

2.7V to 5.5V Input Voltage Range
Compatible with Common Anode RGB LEDs
Four S2Cwire Controlled Lighting Moods
0~60mA Programmable Current Source
Low Noise Constant Frequency Operation
No Inductors
Small Application Circuit
Regulated Output Current
ntegrated LED Control Switches
Automatic Soft-Start
Less than 1μA Shutdown Current

订购信息 Ordering Information

AAT1401

应用领域 APPLICATION

Color Display Backlight
Digital Still Cameras (DSCs)
Digital Photo Frames
PDAs and Notebook PCs
White LED Drivers

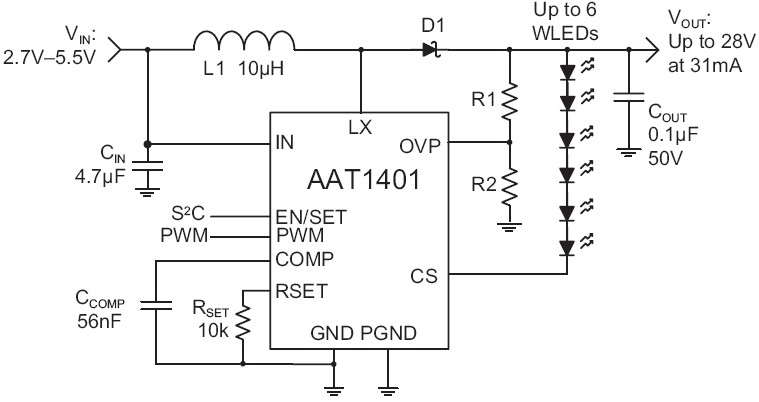

AAT1401 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT1401 数据资料DataSheet下载:pdf	Rev.V2	2 页
