AAT4250 Slew Rate Controlled Load Switch

The AAT4250 SmartSwitch is a member of Skyworks' Application Specific Power MOSFET (ASPM™) product family. It is a slew rate controlled P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with an input voltage range from 1.8V to 5.5V, making it ideal for 2.5V, 3.3V, or 5V systems. The part features 1.5ms turn-on and 10μs turn-off time. The AAT4250 has an under-voltage lockout which turns off the switch when an under-voltage condition exists. Input logic levels are TTL compatible. The quiescent supply current is very low, typically 2μA. In shutdown mode, the supply current is typically reduced to 0.1μA or less. The AAT4250 is available in a Pb-free, 5-pin SOT23 (SOT25) package or a Pb-free, 8-pin SC70JW package and is specified over the -40°C to +85°C temperature range.

技术特性

1.8V to 5.5V Input Voltage Range
120mW (5V) Typical RDS(ON)
Low Quiescent Current:
Typical 2μA
Typical 0.1μA with Enable Off
Only 2.0V Needed for ON/OFF Control
Temperature Range: -40°C to +85°C
5kV ESD Rating
SOT23-5 or SC70JW-8 Package

订购信息 Ordering Information

AAT4250

应用领域 APPLICATION

Hot Swap Supplies
Notebook Computers
Personal Communication Devices

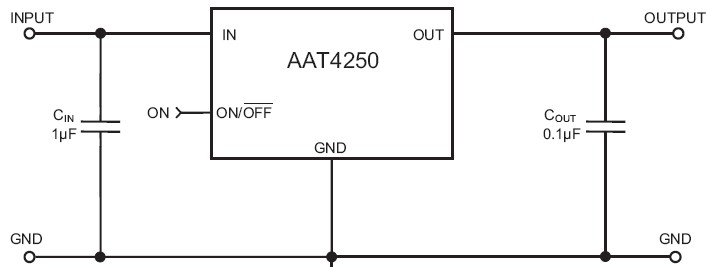

AAT4250 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT4250 数据资料DataSheet下载:pdf	Rev.V2	2 页
