AAT4610 Current Limited Load Switch

The AAT4610 SmartSwitch is a current limited P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with inputs ranging from 2.7V to 5.5V, making it ideal for both 3V and 5V systems. An integrated current-limiting circuit protects the input supply against large currents which may cause the supply to fall out of regulation. The AAT4610 is also protected from thermal overload which limits power dissipation and junction temperatures. It can be used to control loads that require up to 1A. Current limit threshold is programmed with a resistor from SET to ground. The quiescent supply current is typically a low 15μA max. In shutdown mode, the supply current decreases to less than 1μA. The AAT4610 is available in a Pb-free 5-pin SOT23 package and is specified over the -40°C to +85°C temperature range.

技术特性
  • Input Voltage Range: 2.7V to 5.5V
  • Programmable Over-Current Threshold
  • Fast Transient Response:
  • <1μs Response to Short Circuit
  • Low Quiescent Current
  • 15μA Typical
  • 1μA Max with Switch Off
  • 160m Typical RDS(ON)
  • Only 2.5V Needed for ON/OFF Control
  • Under-Voltage Lockout
  • Thermal Shutdown
  • 4kV ESD Rating
  • UL Approved—File No. E217765
  • 5-Pin SOT23 Package
  • Temperature Range: -40°C to +85°C
订购信息 Ordering Information
  • AAT4610
应用领域 APPLICATION
  • Hot Swap Supplies
  • Notebook Computers
  • Peripheral Ports
  • Personal Communication Devices

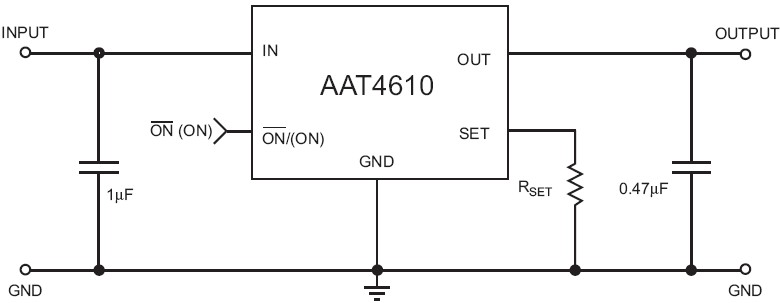

AAT4610 典型应用

AAT4610 典型应用
