AAT4626 T4626USB Dual-Channel Power Switch

The AAT4626 SmartSwitch is part of Skyworks' Application Specific Power MOSFET (ASPM™) product family. It is a dual-channel 500mA current-limited P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with inputs ranging from 2.7V to 5.5V, making it ideal for both 3V and 5V systems. An integrated current-limiting circuit protects the input supply against large changes in load current which may cause the supply to fall out of regula- tion. The AAT4626 is also protected from thermal over- load which limits power dissipation and junction tem- peratures. The current limit threshold is factory pro- grammed at 1.0A, with a maximum of 1.5A. The quies- cent supply current is typically a low 20μA. In shutdown mode, the supply current decreases to less than 1μA. The AAT4626 is available in a Pb-free, 8-pin SOP pack- age and is specified over the -40°C to +85°C tempera- ture range. The AAT4600 series is a family of adjustable and fixed SmartSwitch products with a range of current handling capabilities. Single versions are available with adjustable current limit (AAT4601) or fixed current limit (AAT4626), as well as dual versions with fixed current limit (AAT4626).

技术特性

2.7V to 5.5V Input Voltage Range
Compliant with USB 1.1 and 2.0 Specifications
500mA Minimum Continuous Current per Channel
1.25A Maximum Current Limit per Channel
90mW Typical RDS(ON)
Low Quiescent Current:
Typically 20μA
1μA Maximum with Switch Off
Thermal Shutdown
Slew Rate Limited Turn On
Fault Flag with 10ms Blanking
Under-Voltage Lockout (UVLO)
Temperature Range: -40°C to +85°C
UL Approved - File No. E217765
8-Pin SOP or MSOP Package

订购信息 Ordering Information

AAT4626

应用领域 APPLICATION

General-Purpose Power Switching
Hot Swap Supplies
Notebook Computers
USB Ports and Peripherals

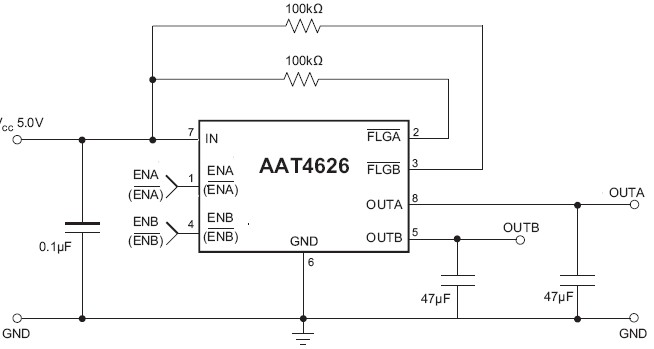

AAT4626 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT4626 数据资料DataSheet下载:pdf	Rev.V2	2 页
