SKY12338-337LF 0.35-4.0 GHz Two-Bit Digital Attenuator

The SKY12338-337LF is a GaAs pHEMT two-bit digital attenuator I/C. The device is provided in a 3 x 3 mm, 12-pin Quad Flat No-Lead (QFN) package. The SKY12338-337LF is particularly suited for low-cost commercial applications for which high attenuation accuracy, low insertion loss, and low intermodulation products are required.

技术特性
  • Positive voltage operation: 2.65 to 5 V per bit
  • Broadband operation: 0.35 to 4.0 GHz
  • Attenuation: 18 dB with 6 dB LSB
  • Low insertion loss: 0.75 dB @ 2 GHz
  • Absorptive in 50 Ω systems
  • Small, QFN (12-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY12338-337LF
应用领域 APPLICATION
  • Cellular infrastructure
  • Wireless receivers

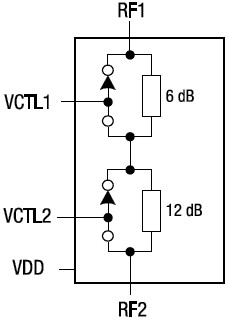

功能框图 Functional Block Diagram

SKY12338-337LF 功能框图
应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY12338-337LF 数据资料DataSheet下载:pdf Rev.V2 2 页
