SKY13309-370LF 0.1 – 3.0 GHz pHEMT GaAs SP3T Switch

The SKY13309-370LF is a GaAs pHEMT Single-Pole, Triple-Throw (SP3T) antenna switch that operates in the 0.1 to 3.0 GHz frequency range. Switching between the antenna (RFC signal) and the RF1, RF2, and RF3 ports is accomplished with three control voltages. The low loss, high isolation, high linearity, small size, and low cost make this switch ideal for all WLAN and Bluetooth systems operating in the 2.4 to 2.5 GHz band.

技术特性
  • Positive low voltage control: 0/3 V
  • Low insertion loss: 0.5 dB @ 2.5 GHz
  • High isolation: 25 dB @ 2.5 GHz
  • Excellent linearity performance: P1dB = +29 dBm
  • Advanced pHEMT process
  • Miniature, ultra-thin DFN (8-pin,
订购信息 Ordering Information
  • SKY13309-370LF
应用领域 APPLICATION
  • 802.11 a/b/g/n WLAN networks
  • Bluetooth® systems
功能框图 Functional Block Diagram

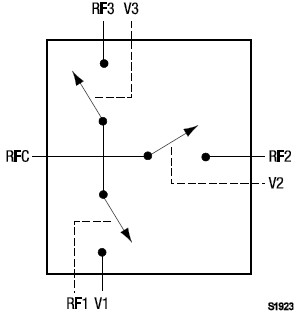

SKY13309-370LF 功能框图
