FLI7510 Worldwide H.264/MPEG decoder + Faroudja video processing iDTV SoC

The FLI7510 is a revolutionary new iDTV SoC that integrates two highly successful, market-proven subsystems: STi710x digital/front-end processing and multi-format audio/video decoding from the STB market, and Faroudja video/back-end processing from the TV market. The FLI7510 is a high-performance, state-of-the-art SoC that can power DTT/cable/satellite/IPTV iDTV designs for worldwide deployment. From the software compatibility extending from the mature STi710x STAPI layer to the extensive video processing, tuning, and tools from Faroudja Labs, the FLI7510 is the ideal solution for addressing the next generation of iDTV design requirements.

The FLI7510 is the first in a family of scalable in performance and software compatible SoCs that address mainstream and performance segments of the iDTV market.

The FLI7510 implements the latest generation of Faroudja Video Optimized technologies, which allow a high degree of customization for TV OEMs. Key technology improvements in this area include 14-bit color and contrast processing, upgraded sharpness, upgraded temporal noise reduction, and new MPEG noise reduction.

The FLI7510, with high performance CPU, A/V decode, graphics engine, and extensive network interface capability, enables TVs to deliver rich applications for convenient access to multimedia content, both from within the home, as well as from the web

技术特性

ST231 @ 450 MHz for advanced high definition video decoding (H.264/VC-1/MPEG2/…) --> Worldwide Digital Terrestrial Television (DTT) broadcast video standards compatibility
Dual ST231 @ 450 MHz for advanced multi-channel audio decoding (MPEG-1/2, MP3, WMA, Dolby® Digital/Dolby Digital+, AAC/AAC+/…) --> Worldwide DTT broadcast audio standards compatibility
Dual ST40 CPU @ 450 MHz (delivers 1600 DMIPS) runs Linux and OS21 --> One CPU (800 DMIPS) fully dedicated to application and user interface
Faroudja® video processing for Main Video --> Vivid picture quality for the consumer
14-bit Advanced Color Management (3D) and Contrast processing --> Ultimate video quality for OEMs and consumers
Award-winning DCDi, MADi technologies --> Crystal-clear rendering on 1080p displays
Worldwide analog audio demodulator
Physical graphics planes enabling rich, easy-to-use user I/Fs
Extensive analog A/V and digital HDMI (x3) inputs --> End-user convenience for legacy and future content source boxes
DVR support on Flash/HDD --> Integration into DTV results in convenience and ease-of-use
Extensive connectivity (USB host controller and Ethernet MAC) --> Play back content from anywhere in home or from Internet
Advanced security features supporting embedded CA as well as CI/CI+ and DRM applications--> Copy protection support, including HDCP, AES/DES/TDES, Rovi™
2 x 16 bits DDR2/DDR3 1066 Mbps DRAM I/F --> Performance and flexibility with DRAM ICs
Dual high-speed 10-bit LVDS outputs --> Convenient connectivity to panel TCON
Board Support Package (BSP) API accelerates time to market

应用领域

Connected, high-performance, and mainstream iDTVs with support for 120 Hz 3DTVs
Multi-region, single footprint for DVB/ATSC/DTMB/ISDB

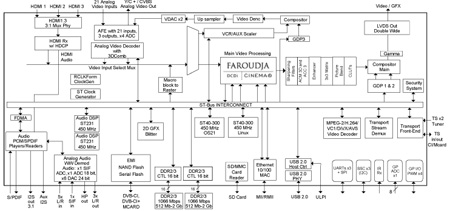

功能框图

FLI7510 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI7510-BBC	Active			PBGA 956 35x35x2.3	Tray		FLI7510-BBC
FLI7510-ABA	Active			PBGA 956 35x35x2.3	Tray		FLI7510-ABA

DATA BRIEF

描述	版本	大小
FLI7510 :DB0884: Freeman Lite - iDTV SoC worldwide H.264/MPEG decoder + Faroudja video processing	11	183KB

FLYERS

描述	版本	大小
FL7510 Freeman worldwide H.264/MPEG decoder iDTV SoC	1.0	1188KB
Faroudja Video Optimized calibration program	1.0	1066KB
