AG403-86G 级联增益模块

The TriQuint AG403-86G is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG403-86G typically provides 20.5 dB gain, +31.5 dBm OIP3, and +18 dBm P1dB. The device combines dependable performance with consistent quality to maintain MTTF values exceeding 1000 years at mounting temperatures of +85 °C and is housed in a lead-free / green / RoHS-compliant SOT-86 (micro-X) industry standard SMT package. The AG403-86G consists of a Darlington-pair amplifier using the high reliability InGaP / GaAs HBT process technology and only requires DC-blocking capacitors, a bias resistor, and an inductive RF choke for operation. The broadband MMIC amplifier can be directly applied to various current and next generation wireless technologies such as GPRS, GSM, CDMA, and W-CDMA. In addition, the AG403-86G will work for other various applications within the DC to 6 GHz frequency range such as CATV and WiMAX.

技术特性
  • DC to 6000 MHz
  • 20.5 dB gain @ 900 MHz
  • +18 dBm P1dB @ 900 MHz
  • +31.5 dBm OIP3 @ 900 MHz
  • Single voltage supply
  • Internally matched to 50 Ohm
  • Robust 1000V ESD, Class 1C
  • Lead-free / green / RoHS compliant
  • SOT-86 package
技术指标
频率(GHz) 增益(dB) P1dB (dBm) OIP3 (dBm) NF (dB) Min. Vcc (V) Vdevice (V) Icc (mA) 封装类型
DC - 6 21 18 31.5 3 6 4.9 60 SOT-86
订购信息 Ordering Information
AG403-86G  InGaP HBT Gain Block (lead-free/green/RoHS-compliant SOT-86 Package)
AG403-86PCB  700 – 2400 MHz Fully Assembled Eval. Board
应用领域 APPLICATION
  • CATV / DBS
  • Defense / Homeland Security
  • Fixed Wireless
  • Industrial, Scientific and Medical (ISM)
  • Mobile Infrastructure

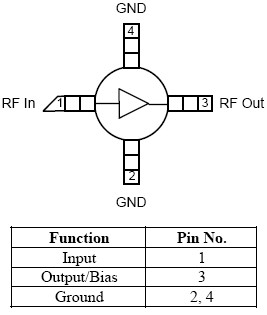

功能框图 Functional Block Diagram

AG403-86G 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AG403-86G:S-参数
AG403-86G封装信息:pdf
AG403-86G材料清单:pdf
AG403-86G封装信息:dwg
AG403-86G布局文件
AG403-86G 数据资料DataSheet下载:pdf Rev.V2 2 页
