TGA2525 2-18 GHz 低噪声放大器，含AGC
The TriQuint TGA2525 is a compact low noise amplifier (LNA) gain block MMIC with adjustable gain control (AGC). The LNA operates from 2 to 18 GHz and is designed using TriQuint's proven standard 0.15 um power pHEMT production process. The TGA2525 provides a nominal 18 dBm of output power at 1 dB gain compression with a small signal gain of 17 dB. Greater than 30 dB adjustable gain can be achieved using Vg2 pin. Typical noise figure is 2 dB at 8 GHz. Special circuitry on both Vg1 and Vg2 pins provides ESD protection. The TGA2525 is suitable for a variety of wideband systems such as point-to-point radios, radar warning receivers and electronic counter measures (ECM). The TGA2525 is 100% DC and RF tested on-wafer to ensure performance compliance. The TGA2525 has a protective surface passivation layer providing environmental robustness. The part is lead-Free and RoHS compliant. Evaluation boards are available upon request.
技术特性
- Frequency range: 2 to 18 GHz
- Bias: Vd = 5 V, Id = 75 mA, Vg1 = -0.6 V, Vg2 = +1.3 V, typical
- ESD protection circuitry on Vg1 & Vg2
- 22 dBm nominal Psat, 18 dBm nominal P1dB
- TOI: 29 dBm typical
- > 30 dB adjustable gain with Vg2
- Midband noise figure: 2 dB
- Gain: 17 dB
- Technology: 3MI 0.15 um Power pHEMT
- Chip dimensions: 2.09 x 1.35 x 0.1 mm
应用领域 APPLICATION
- Electronic Warfare
- Wideband Gain Blocks / Low Noise Amplifiers (LNAs)
- X and Ku Band Point-to-Point Radio
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 17-24 |
28 |
17 |
- |
5 |
712 |
订购信息 Ordering Information

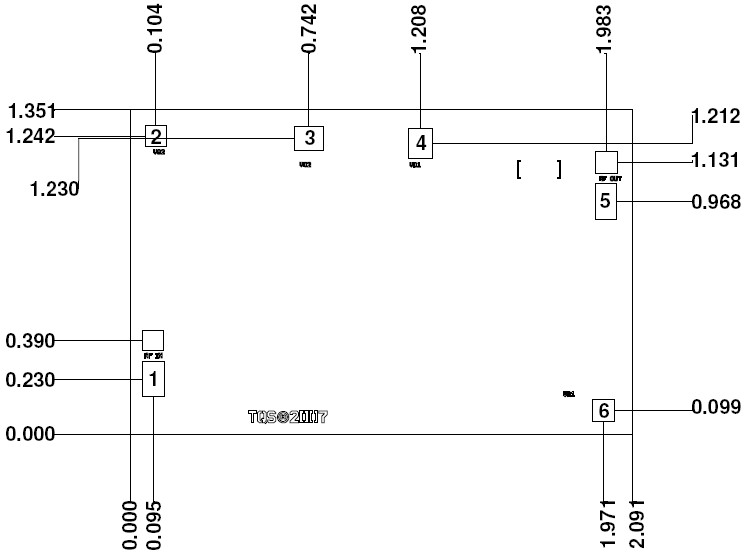

机械图样Mechanical Drawing
 |
