TGA2700 X 波段驱动放大器
The TriQuint TGA2700 is an X band driver amplifier that operates between 7 - 13 GHz. The driver amplifer is designed using TriQuint's proven standard 0.25 um gate pHEMT production process. The TGA2700 provides typical 30 dBm output power at +10 dBm input power and has a small signal gain of 25 dB. The TGA2700 is 100% DC and RF tested on-wafer to ensure performance compliance.
技术特性
- Frequency range: 7 to 13 GHz
- 25 dB nominal gain
- 30dBm output power @ Pin=10dBm, Midband
- 12 dB input return loss
- 10 dB output return loss
- 0.25 um 3MI pHEMT technology
- Nominal bias 9V @ 300 mA, 225 mA
- Chip dimensions: 1.57 x 1.33 x 0.10 mm (0.062 x 0.052 x 0.004 in)
应用领域 APPLICATION
- Point-to-Point Radio
- X Band Driver
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 8-13 |
30 |
25 |
- |
9 |
300 |
订购信息 Ordering Information

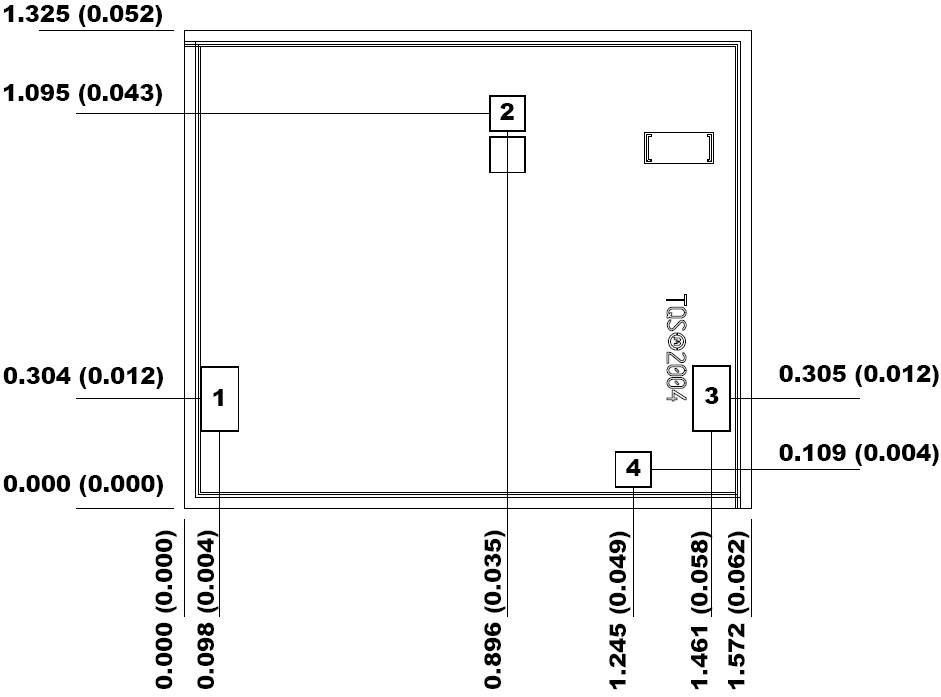

机械图样Mechanical Drawing
 |
