TGA4022 K-波段高功率放大器
The TriQuint TGA4022 is a compact high power amplifier MMIC for K band applications. The part is designed using TriQuint's proven standard 0.25 um power pHEMT production process. The TGA4022 nominally provides 32.5 dBm of output power at 1dB gain compression from 18 - 23 GHz. The MMIC also provides 26 dB gain and 15 dB typical return loss. The part is ideally suited for markets such as point-to-point radio, point-to-multipoint communications and K band satellite communications, both commercial and military. The TGA4022 is 100% DC and RF tested on-wafer to ensure performance compliance. The part is lead-free and RoHS compliant.
技术特性
- Frequency range: 18 to 23 GHz
- 26 dB nominal gain
- 32.5 dBm nominal P1dB
- 15dB nominal return loss
- Bias 7.0 V, 840 mA
- 0.25 um 2MI pHEMT technology
- Chip dimensions 3.65 x 3.14 x 0.10 mm (0.144 x 0.124 x 0.004 in)
应用领域 APPLICATION
- K Band Satellite Communications (Satcom)
- Point-to-Multipoint Radio
- Point-to-Point Radio
订购信息 Ordering Information
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 18-23 |
32.5 |
26 |
- |
7 |
840 |

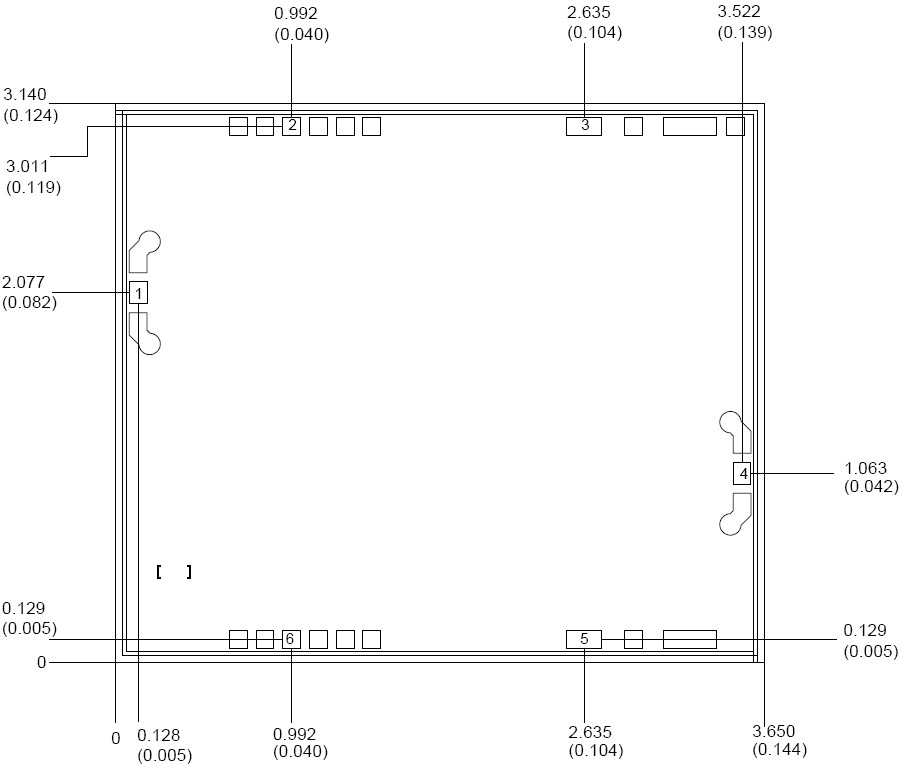

机械图样Mechanical Drawing
 |
