TQM879006A 数字可变增益放大器模块

The TQM879006A is a digital variable gain amplifier (DVGA) featuring high linearity over the entire gain control range. The amplifier module features the integration of a low noise amplifier gain block, a digital-step attenuator (DSA), along with a high linearity ¼W amplifier. The module has the added features of integrating all matching components with bias chokes and blocking capacitors in a compact 6x6 mm leadless SMT package. The internal DSA offers 0.5 dB step, 6-bit, and 31.5 dB range and has a serial controlled interface. The DVGA operations over the entire 1.4 - 2.7 GHz frequency range with +43 dBm Output IP3 and +24.5 dBm P1dB while operating from single +5V supply. The amplifier also has a very low 1.5 dB Noise Figure (at maximum gain) allowing it to be an ideal DVGA for both receiver and transmitter applications. The device is ideal for 3G/4G base station transceivers or repeater applications. The TQM879006A is pin and package compatible to the 0.6 - 1.0 GHz DVGA, the TQM829007.

技术特性

1.4 – 2.7 GHz
24.5 dBm P1dB, 31.7dB gain
Fully integrated 50 ohm module
Includes Amp + DSA + Amp
Integrated matching networks, bypass/blocking caps, chokes
6-bit, 31.5 dB gain range
5V operation
174 mA Icc

技术指标

频率(GHz)	衰减幅度 (dB)	增益 (dB)	P1dB (dBm)	OIP3 (dBm)	NF (dBm)	Idd (mA)	Vdd (V)	封装
0.05 - 2.2	20	15.5	22	42	4.5	150	5	4x4mm QFN16

订购信息 Ordering Information

TQM879006A	1.4-2.7GHz Digital Variable Gain Amp
TQM879006A-PCB	Fully Assembled Evaluation Board Includes USB control board (EVH)

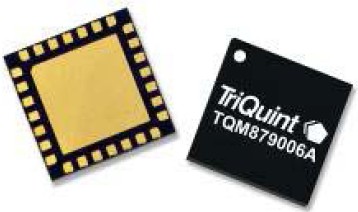

TQM879006A 产品实物图

应用领域 APPLICATION

3G / 4G Wireless Infrastructure
High Power Amplifiers
Repeaters
Point-to-Point Radio
VSAT
LTE
WCDMA
TDD
FDD

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
TQM879006A:封装信息
TQM879006A材料清单
TQM879006A布局文件
TQM879006A 数据资料DataSheet下载：PDF	Rev.V2	2 页
