TQM879008 数字可变增益放大器
The TQM879008 is a digital variable gain amplifier (DVGA) featuring high linearity over the entire gain control range. This amplifier module integrates two gain blocks, a digital-step attenuator (DSA) and a high linearity 0.5 W amplifier. The module has the added feature of integrating all matching components, bias chokes and blocking capacitors. The internal 6-bit DSA provides a 31.5 dB gain control range in 0.5 dB steps and is controlled with a serial periphery interface (SPIâ„¢). The TQM879008 features variable gain from 10 dB to 41.5 dB at 2.5 GHz, +48.5 dBm output IP3, and +27.3 dBm P1dB. The module operates from a single +5 V supply and is available in a compact 28-pin 6 x 6 mm leadless SMT package. The TQM879008 is pin compatible with the TQM829007 (0.7 - 1.0 GHz, 0.25 W DVGA) and TQM879006 (1.8 - 2.7 GHz, 0.25 W DVGA). This allows one to size the right type of device for specific system level requirements as well as making the DVGA family ideal for applications where a common PCB layout is used for different frequency bands.
技术特性
- 2.3 - 2.7 GHz frequency range
- 41.5 dB maximum gain at 2.5 GHz
- 31.5 dB gain range in 0.5 dB steps
- +48.5 dBm Output IP3
- +27.3 dBm Output P1dB
- Fully internally matched module
- Integrated blocking capacitors, bias inductors
- 3-wire SPI control programming

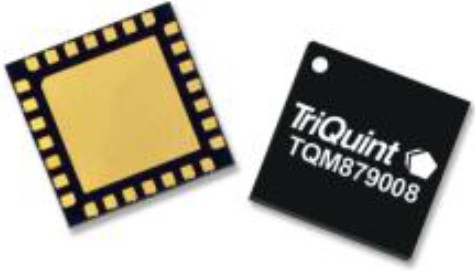

TQM879008 产品实物图
|
应用领域 APPLICATION
- 3G / 4G Wireless Infrastructure
- VSAT
- LTE / WCDMA / GSM
- Repeaters
- Point-to-Point Radio
- High Power Amplifiers
技术指标
| 频率(GHz) |
衰减幅度 (dB) |
增益 (dB) |
P1dB (dBm) |
OIP3 (dBm) |
NF (dBm) |
Idd (mA) |
Vdd (V) |
封装 |
| 1,500 - 2,700 |
31.5 |
41.5 |
27.3 |
48.5 |
3.9 |
285 |
5 |
6 x 6 mm |
订购信息 Ordering Information
| TQM879008 |
1.5-2.7 GHz Digital Variable Gain Amp |
| TQM879008-PCB |
Fully Assembled Evaluation Board Includes USB control board (EVH) |
功能框图 Functional Block Diagram
|
