TQM8M9076 数字可变增益放大器
The TriQuint TQM8M9076 is a digitally controlled variable gain amplifier (DVGA) with a broadband frequency range of 50 to 4000 MHz. The DVGA features high linearity and low noise while providing digital variable gain with a 31.5 dB of range in 0.5 dB steps through a 6-bit serial mode control interface. The TQM8M9076 integrates a high performance digital step attenuator followed by a high linearity, broadband gain block. The input and output of the individual stages are accessible with external pins to allow for optimization of performance at any sub-band across the DVGA's 0.05 to 4.0 GHz operating frequency range. The part is packaged in a RoHS compliant, compact 5 x 5 mm surface mount leadless package. Superior thermal design allows the product to have a minimum MTTF rating of 1000 years at a mounting temperature of +85º C. The TQM8M9076 is targeted for use in wireless infrastructure, point-to-point or can be used for any general purpose wireless application.
技术特性
- Integrates digital step attenuator + amplifier functionality
- 50 to 4000 MHz broadband performance
- 19.3 dB Gain @ 2.14 GHz
- 2.9 dB noise figure @ max gain setting
- +21.5 dBm P1dB
- +38.5 dBm OIP3
- +5 V supply voltage
- 125 mA operating current
- MTTF > 1000 years

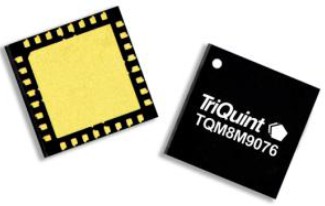

TQM8M9076 产品实物图
|
应用领域 APPLICATION
- 3G / 4G Wireless Infrastructure
- IF Applications
- LTE / WCDMA / GSM
- Point-to-Point Radio
- Repeaters
- RF Applications
- VSAT
技术指标
| 频率(GHz) |
衰减幅度 (dB) |
增益 (dB) |
P1dB (dBm) |
OIP3 (dBm) |
NF (dBm) |
Idd (mA) |
Vdd (V) |
封装 |
| 0.05 - 4 |
31.5 |
19.5 |
22 |
38.5 |
2.9 |
125 |
5 |
5 x 5 mm |
订购信息 Ordering Information
| TQM8M9076 |
Digital Variable Gain Amplifier |
功能框图 Functional Block Diagram
|
