ADA4304-3: 1:3 Single-Ended, Low Cost, Active RF Splitters

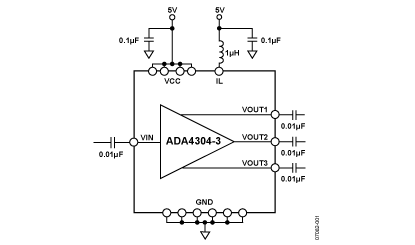

ADA4304-3 功能框图The ADA4304-3/ADA4304-4 are 75 Ω active splitters for use in applications where a lossless signal split is required. Typical applications include multituner digital set-top boxes, cable splitter modules, multituners/digital cable ready (DCR) televisions, and home gateways where traditional solutions require discrete passive splitter modules with separate fixed gain amplifiers.The ADA4304-3/ADA4304-4 are fabricated using the Analog Devices, Inc., proprietary silicon germanium (SiGe), complementary bipolar process, enabling them to achieve very low levels of distortion with a noise figure of 4.6 dB. The parts provide low cost alternatives that simplify designs and improve system performance by integrating a signal splitter element and a gain block into a single IC. The ADA4304-3/ADA4304-4 are available in a 16-lead LFCSP and operate in the extended industrial temperature range of −40°C to +85°C.

技术指标
  • Positive Supply (max): +5V
  • -3 dB BW (MHz): 2400MHz
  • Gain/Attenuate Range (dB): +3.3dB
  • CSO (dBc): +62dBc
  • CTB (dBc): +72dBc
  • Package: 16-Lead LFCSP
  • 1-dB Bandwidth (MHz): 865MHz
  • Noise Figure (dB): 4dB
应用领域
  • Set-top boxes
  • Residential gateways
  • CATV distribution systems
  • Splitter modules
  • Digital cable ready (DCR) TVs
技术特性
  • Ideal for CATV and terrestrial applications
  • 2.4 GHz, −3 dB bandwidth
    1 dB flatness: 54 MHz to 865 MHz
  • Low noise figure: 4.6 dB
  • Low distortion
    Composite second-order (CSO): −62 dBc
    Composite triple beat (CTB): −72 dBc
  • Nominal 3 dB gain per output channel
  • 25 dB output-to-output isolation, 50 MHz to 1000 MHz
  • 75 Ω input and outputs
  • Small package size: 16-lead, 3 mm × 3 mm LFCSP
订购指南
产品型号 产品状态 封装 引脚 温度范围 包装和数量 报价*(100-499) 报价*1000 pcs RoHS
ADA4304-3ACPZ-R2 量产 16 ld LFCSP (3x3mm, 1.3mm exposed pad) 16 工业 Reel, 250 $ 1.75 $ 1.75 Y  材料信息
ADA4304-3ACPZ-R7 量产 16 ld LFCSP (3x3mm, 1.3mm exposed pad) 16 工业 Reel, 1500 - $ 1.00 Y  材料信息
ADA4304-3ACPZ-RL 量产 16 ld LFCSP (3x3mm, 1.3mm exposed pad) 16 工业 Reel, 5000 - $ 1.00 Y  材料信息
