ADA4304-4 1:4 Single-Ended, Low Cost, Active RF Splitters

ADA4304-4: 1:4 Single-Ended, Low Cost, Active RF Splitters

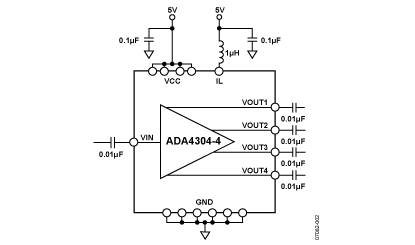

ADA4304-4 功能框图 The ADA4304-3/ADA4304-4 are 75 Ω active splitters for use in applications where a lossless signal split is required. Typical applications include multituner digital set-top boxes, cable splitter modules, multituners/digital cable ready (DCR) televisions, and home gateways where traditional solutions require discrete passive splitter modules with separate fixed gain amplifiers.The ADA4304-3/ADA4304-4 are fabricated using the Analog Devices, Inc., proprietary silicon germanium (SiGe), complementary bipolar process, enabling them to achieve very low levels of distortion with a noise figure of 4.6 dB. The parts provide low cost alternatives that simplify designs and improve system performance by integrating a signal splitter element and a gain block into a single IC. The ADA4304-3/ADA4304-4 are available in a 16-lead LFCSP and operate in the extended industrial temperature range of −40°C to +85°C.

技术指标

Positive Supply (max): +5V
-3 dB BW (MHz): 2400MHz
Gain/Attenuate Range (dB): +2.9dB
CSO (dBc): +-62dBc
CTB (dBc): +-72dBc
Package: 16-Lead LFCSP
1-dB Bandwidth (MHz): 865MHz
Noise Figure (dB): 4dB

应用领域

Set-top boxes
Residential gateways
CATV distribution systems
Splitter modules
Digital cable ready (DCR) TVs

技术特性

Ideal for CATV and terrestrial applications
2.4 GHz, −3 dB bandwidth
1 dB flatness: 54 MHz to 865 MHz
Low noise figure: 4.6 dB
Low distortion
Composite second-order (CSO): −62 dBc
Composite triple beat (CTB): −72 dBc
Nominal 3 dB gain per output channel
25 dB output-to-output isolation, 50 MHz to 1000 MHz
75 Ω input and outputs
Small package size: 16-lead, 3 mm × 3 mm LFCSP

订购指南

产品型号	产品状态	封装	引脚	温度范围	包装和数量	报价*(100-499)	报价*1000 pcs	RoHS
ADA4304-4ACPZ-R2	量产	16 ld LFCSP (3x3mm, 1.3mm exposed pad)	16	工业	Reel, 250	$ 2.81	$ 2.81	Y 材料信息
ADA4304-4ACPZ-R7	量产	16 ld LFCSP (3x3mm, 1.3mm exposed pad)	16	工业	Reel, 1500	-	$ 1.61	Y 材料信息
ADA4304-4ACPZ-RL	量产	16 ld LFCSP (3x3mm, 1.3mm exposed pad)	16	工业	Reel, 5000	-	$ 1.61	Y 材料信息
