LT3013 - 250mA, 4V to 80V Low Dropout Micropower Linear Regulator with PWRGD

Other features of the LT3013 include a PWRGD flag to indicate output regulation. The delay between regulated output level and flag indication is programmable with a single capacitor. The LT3013 also has the ability to operate with very small output capacitors. The regulator is stable with only 3.3µF on the output while most older devices require between 10µF and 100µF for stability. Small ceramic capacitors can be used without any need for series resistance (ESR) as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection.

The device is available with an adjustable output with a 1.24V reference voltage. The LT3013 regulator is available in the thermally enhanced 16-lead TSSOP and the low profile (0.75mm), 12 pin (4mm × 3mm) DFN package, both providing excellent thermal characteristics.

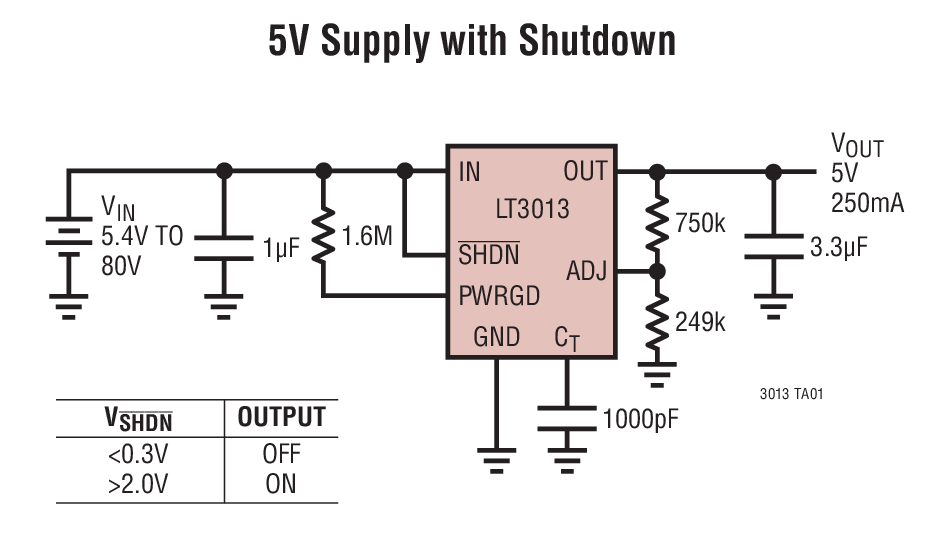

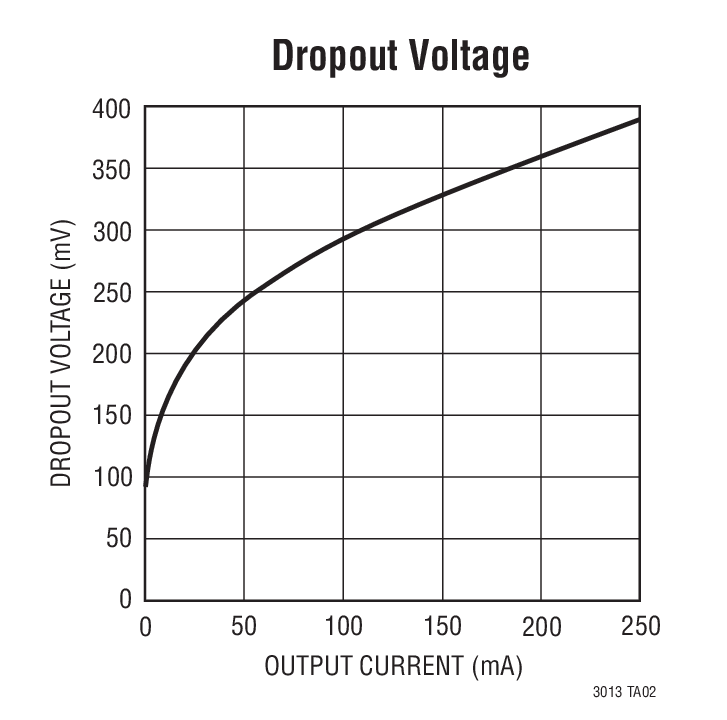

特点 Wide Input Voltage Range: 4V to 80V Low Quiescent Current: 65µA Low Dropout Voltage: 400mV Output Current: 250mA No Protection Diodes Needed Adjustable Output from 1.24V to 60V 1µA Quiescent Current in Shutdown Stable with 3.3µF Output Capacitor Stable with Aluminum, Tantalum or Ceramic Capacitors Reverse-Battery Protection No Reverse Current Flow from Output to Input Thermal Limiting Thermally Enhanced 16-Lead TSSOP and 12 Pin (4mm × 3mm) DFN Package 典型应用

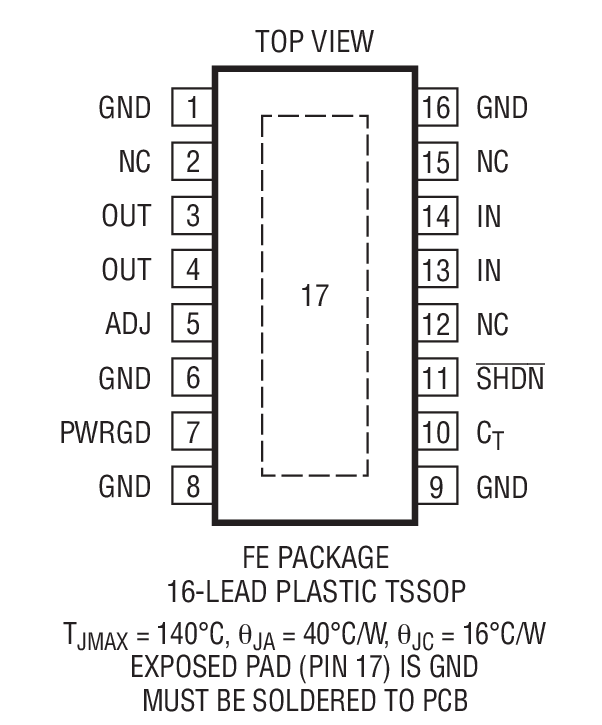

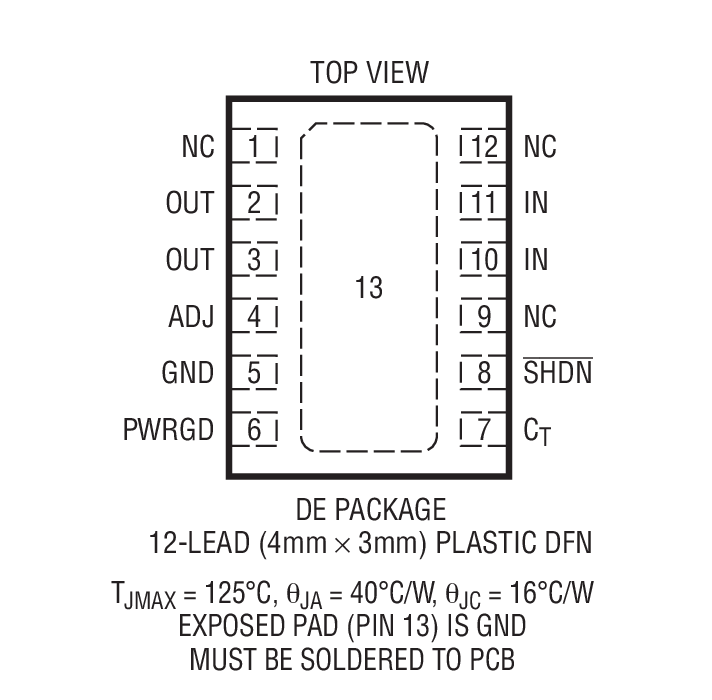

应用 Low Current High Voltage Regulators Regulator for Battery-Powered Systems Telecom Applications Automotive Applications 封装信息

演示电路板
