LT6553 - 650MHz Gain of 2 Triple Video Amplifier

The LT®6553 is a high-speed triple video amplifier with an internally fixed gain of 2. The individual amplifiers are optimized for performance with a double terminated 75 Ohm video load and feature a 2VP–P full signal bandwidth of 400MHz, making them ideal for driving very high-resolution video signals. Separate power supply pins for each amplifier boost channel separation to 75dB, allowing the LT6553 to excel in many high-speed applications.

While the performance of the LT6553 is optimized for dual supply operation, it can also be used on a single supply as small as 4.5V. Using dual 5V supplies, each amplifier draws only 8mA. When disabled, the amplifiers draw less than 100µA and the output pins become high impedance. Furthermore, the amplifiers are capable of turning on in less than 50ns, making them ideal for multiplexing and portable applications.

The LT6553 is manufactured on Linear Technology’s proprietary low voltage complementary bipolar process and is available in the 16-lead SSOP package that fits in the same PCB area as an SO-8 package.

特点
  • 650MHz –3dB Small Signal Bandwidth
  • 400MHz –3dB 2VP-P Large Signal Bandwidth
  • 150MHz ±0.1dB Bandwidth
  • High Slew Rate: 2500V/µs
  • Fixed Gain of 2 Requires No External Resistors
  • 75dB Channel Separation at 10MHz
  • 50dB Channel Separation at 100MHz
  • –82dBc 2nd Harmonic Distortion at 10MHz, 2VP-P
  • –72dBc 3rd Harmonic Distortion at 10MHz, 2VP-P
  • Low Supply Current: 8mA per Amplifier
  • 6ns 0.1% Settling Time for 2V Step
  • TTL Compatible Enable ISS <= 100µA when Disabled
  • Differential Gain of 0.022%, Differential Phase of 0.006°
  • Wide Supply Range: ±2.25V (4.5V) to ±6V (12V)
  • Available in 16-Lead SSOP Package
典型应用

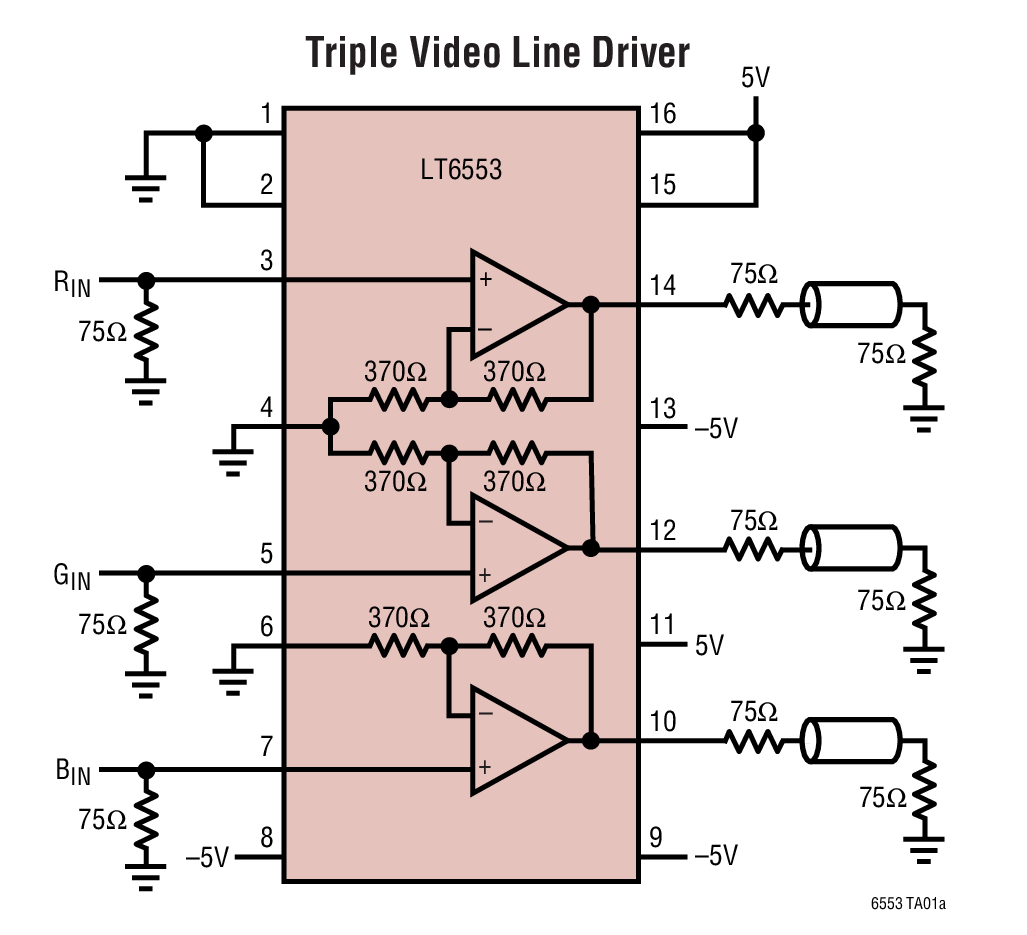

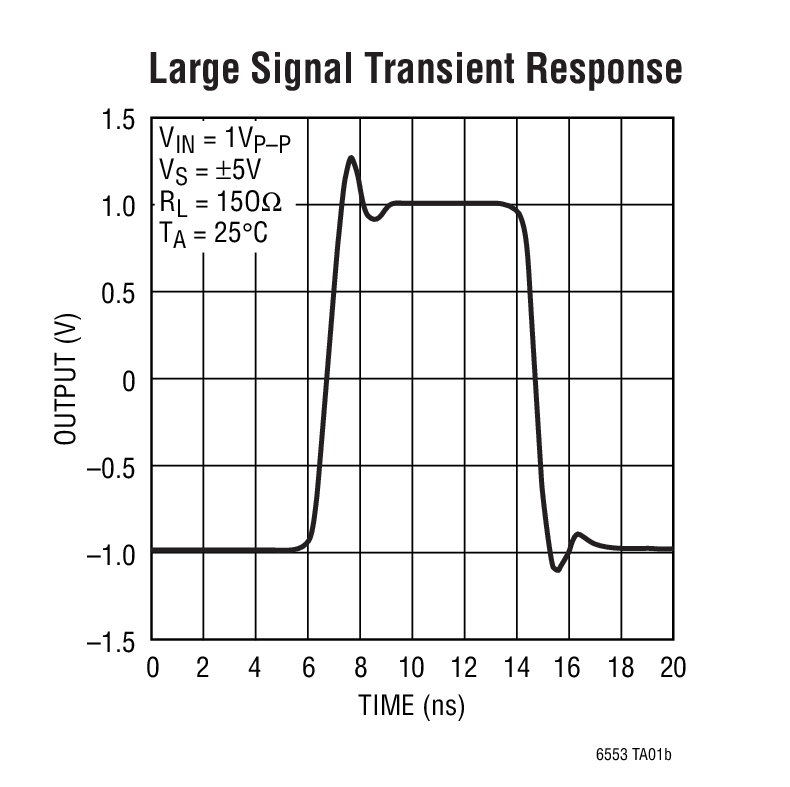

LT6553 Typical Application
LT6553 Typical Application
应用
  • RGB Amplifiers
  • Coaxial Cable Drivers
  • LCD Projectors
封装信息

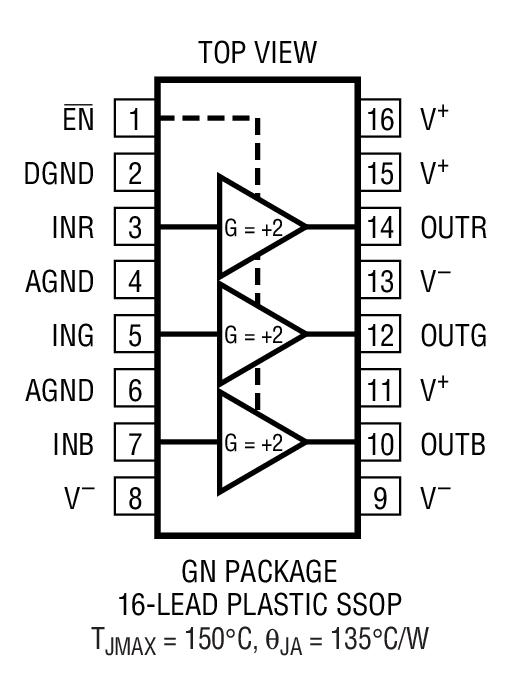

LT6553 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT6553CGN#PBFSSOP-16C$2.80$2.50
LT6553CGN#TRPBFSSOP-16C$2.56
LT6553IGN#PBFSSOP-16I$3.35$3.00
LT6553IGN#TRPBFSSOP-16I$3.06
演示电路板
器件型号描述价格
DC714ALT6553CGN | Triple High Speed Video Amplifier, V+ = 3.3V to 5V, V- = -3.3V to -5V$75.00
DC743ALT6553CGN | Triple High Speed Video Amplifier, V+ = 7V - 12V$75.00
