LTC2195 - 16-Bit, 125Msps Low Power Dual ADCs
The LTC®2195/LTC2194/LTC2193 are 2-channel, simultaneous sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. They are perfect for demanding communications applications with AC performance that includes 76.8dB SNR and 90dB spurious free dynamic range (SFDR). Ultralow jitter of 0.07psRMS allows undersampling of IF frequencies with excellent noise performance.
DC specs include ±2LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is 3.4LSBRMS.
To minimize the number of data lines the digital outputs are serial LVDS. Each channel outputs two bits or four bits at a time. At lower sampling rates there is a one bit per channel option. The LVDS drivers have optional internal termination and adjustable output levels to ensure clean signal integrity.
The ENC+ and ENC– inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
Features

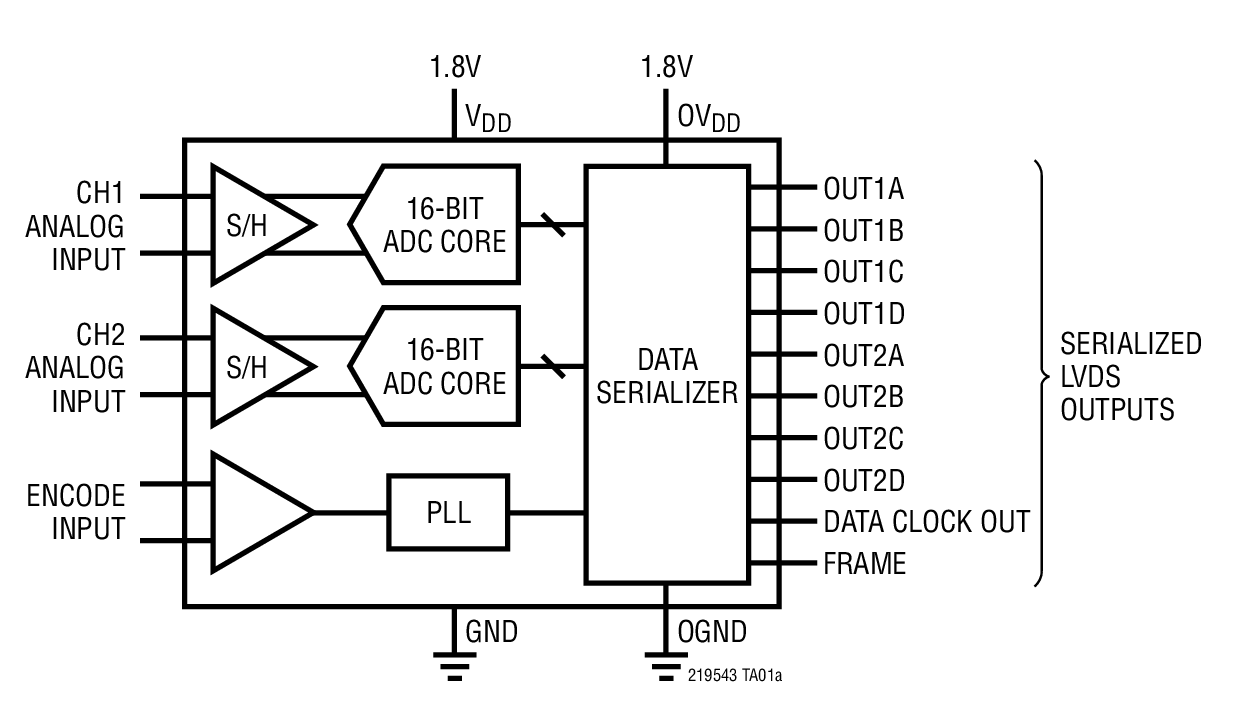

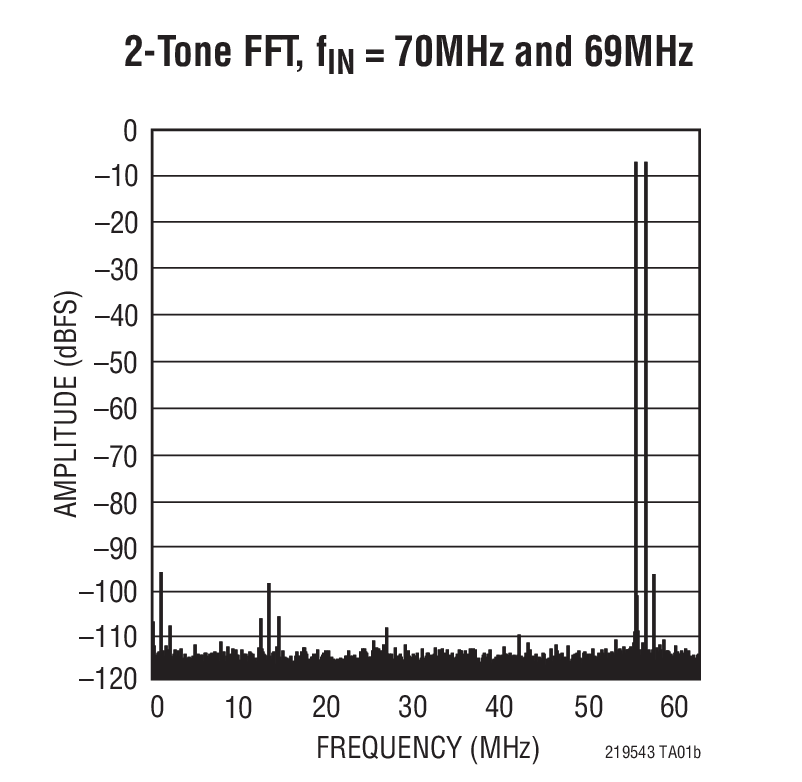

Typical Application  | Applications

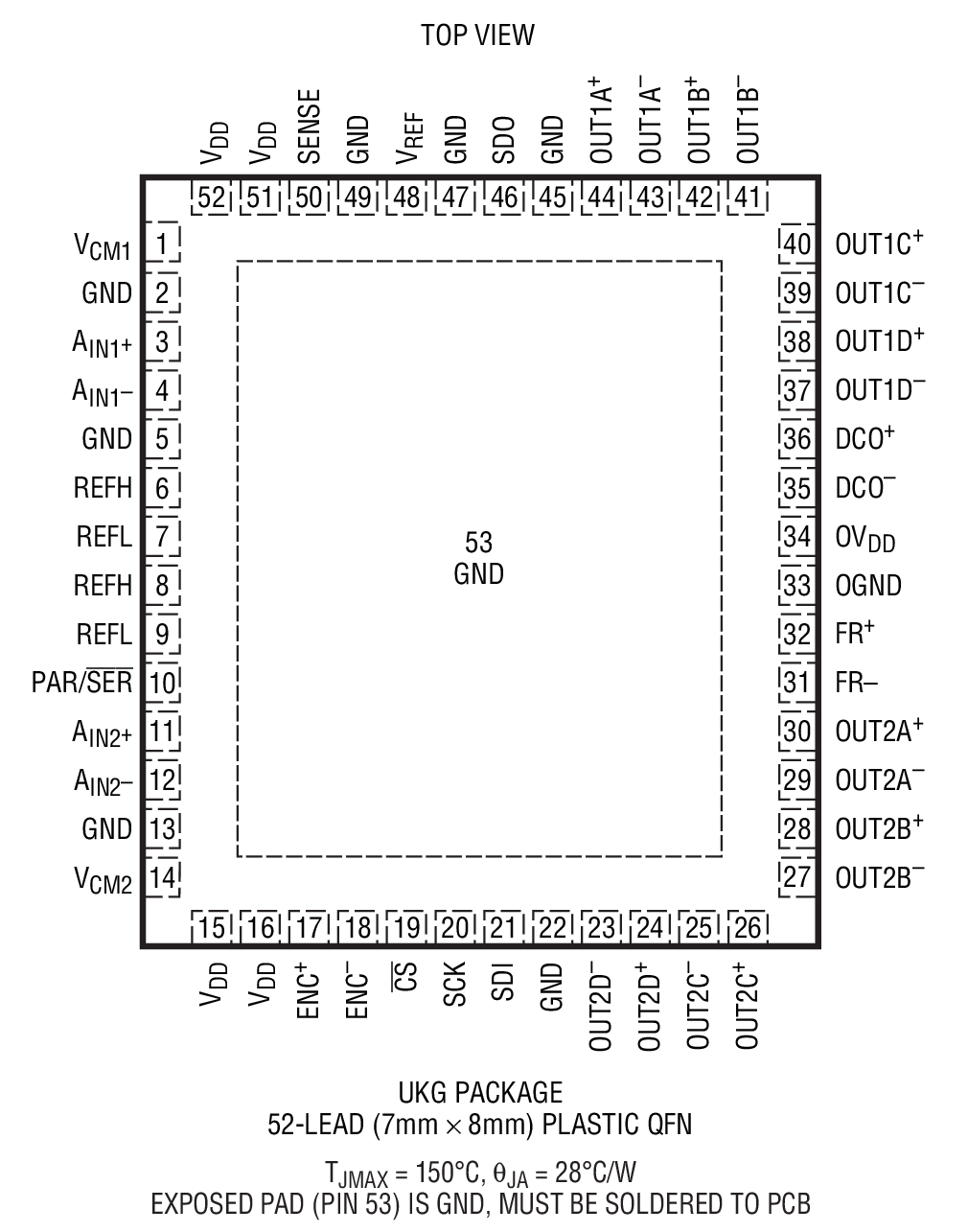

Packaging |
Order Information
| Part Number | Package | Temp | Price(1-99) | Price (1k)* |
|---|---|---|---|---|
| LTC2195CUKG#PBF | 7x8 QFN-52 | C | $145.71 | $102.00 |
| LTC2195CUKG#TRPBF | 7x8 QFN-52 | C | $102.06 | |
| LTC2195IUKG#PBF | 7x8 QFN-52 | I | $174.86 | $122.40 |
| LTC2195IUKG#TRPBF | 7x8 QFN-52 | I | $122.46 |
Demo Boards
| Part Number | Description | Price |
|---|---|---|
| DC1763A-A | LTC2195: 16-bit 125Msps ADC, Serial LVDS Outputs, 5-170MHz, req DC1371 and DC1075 | $200.00 |
Companion Boards
| Part Number | Description | Price |
|---|---|---|
| DC1075A | Clock Divider board | $50.00 |
| DC1371B | FMC High-Speed Data Acquisition Board | $1,950.00 |
