LTC2411 - 24-Bit No Latency Delta Sigma ADC with Differential Input and Reference in MSOP

The converters accept any external differential reference voltage from 0.1V to VCC for flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5VREF to 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCC range of the LTC2411/LTC2411-1. The DC common mode input rejection is better than 140dB.

The LTC2411/LTC2411-1 communicate through a flexible 3-wire digital interface that is compatible with SPI and MICROWIRE™ protocols.

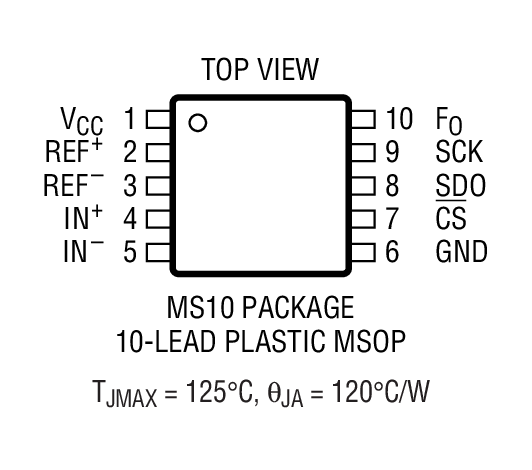

  • 24-Bit ADC in an MS10 Package
  • Low Supply Current (200µA in Conversion Mode and 4µA in Autosleep Mode )
  • Differential Input and Differential Reference with GND to VCC Common Mode Range
  • 2ppm INL, No Missing Codes
  • 4ppm Full-Scale Error and 1ppm Offset
  • 0.29ppm Noise
  • No Latency: Digital Filter Settles in a Single Cycle. Each Conversion Is Accurate, Even After an Input Step
  • Single Supply 2.7V to 5.5V Operation
  • Internal Oscillator—No External Components Required
  • 110dB Min, Pin Selectable 50Hz/60Hz Notch Filter (LTC2411)
  • Simultaneous 50Hz/60Hz Rejection (LTC2411-1)

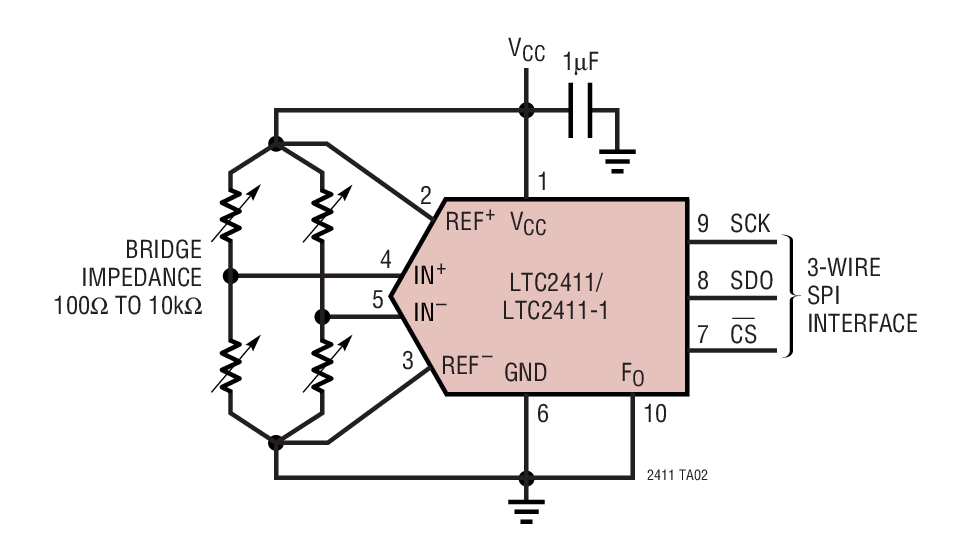

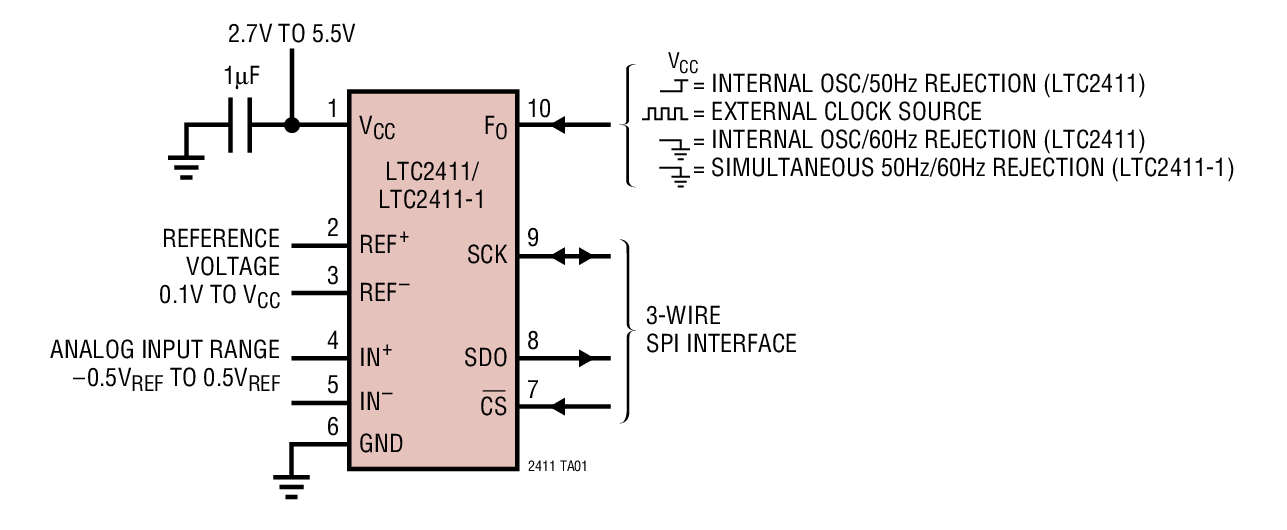

Typical Application

  • Direct Sensor Digitizer
  • Weight Scales
  • Direct Temperature Measurement
  • Gas Analyzers
  • Strain Gauge Transducers
  • Instrumentation
  • Data Acquisition
  • Industrial Process Control
  • 6-Digit DVMs
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
Demo Boards
Part NumberDescriptionPrice
DC358ALTC2411CMS | Differential Input, 24-Bit ADC (with Diskette, Requires Win95/98)$50.00
