LTC4251B SOT-23 封装的负电压热插拔控制器
LTC®4251B / LTC4251B-1 / LTC4251B-2 负电压热插拔 (Hot SwapTM) 控制器允许在带电背板上安全地进行电路板的插拔操作。输出电流由 3 个电流限制级来控制：一个定时电路断路器、有源电流限制和一条快速前馈通路 (用于限制最坏情况灾难性故障条件下的峰值电流)。
当输入电源超过了期望的工作范围时，可调欠压和过压检测器将负载断接。对电源输入进行并联调节，因而在非常高的电源电压条件下实现了安全的运作。一个多功能定时器负责延迟初始启动并控制电路断路器的响应时间。
LTC4251B UV/OV 门限专为与 -43V 至 -75V 的标准电信工作范围相匹配而设计。LTC4251B-1 UV/OV 门限扩展了工作范围以涵盖 -36V 至 -72V。LTC4251B-2 只提供了一个 -43V 的 UV 门限。LTC4251B 改善了 LTC4251 并联稳压器的坚固性。
产品特点 Features
参数 |
应用

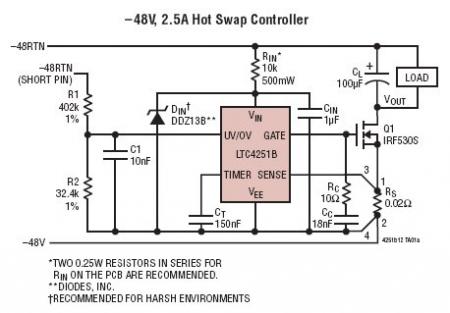

典型应用图 |
