SDA-7000 GaAs Distributed Amplifier Die
RFMD’s SDA-7000 is a directly coupled (DC) GaAs microwave monolithic integrated circuit (MMIC) driver amplifier die designed for use as a Mach Zehnder Modulated (MZM) laser driver employing single-ended (SE) architectures with VP (V-pi) ranging from 4 V to 8 V, driver for 4 x 28 Gbps parallel combined 100 Gbps optical networks, broadband automated test equipment (ATE), instrumentation, military, and aerospace applications.
技术特性 Features
- DC to 40 GHz Operation
- Output Voltage to 8 VPP
- Gain = 12 dB Typical
- Noise Figure = 4.3 dB Typical
- Single Supply Voltage
- 200 mA Total Current
- Supports 100 Gbps LR
- Die Size: 2.4 x 1.2 x 0.102 mm
订购信息 Ordering Information
- SDA-7000 GaAs Distributed Amplifier, 40GHz,2.4mmx1.20mm Die
GelPak 10 or more
- SDA-7000SB Sample Bag, GaAs Distributed Amplifier,40GHz, 2.4mmx1.2mm Die GelPak 2

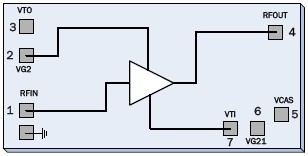

功能框图 Functional Block Diagram
|
技术指标
| Frequency Range (Min) (MHz): |
0 |
| Frequency Range (Max) (MHz): |
40000 |
| Gain (dB): |
11 |
| NF (dB): |
5 |
| OP1dB (dBm): |
21 |
| OIP3 (dBm): |
32 |
| VSUPPLY (V): |
5 |
| ISUPPLY (mA): |
200 |
| Package: |
Die |
应用领域 Applications
- Drive for Single-Ended (SE) MZM
- NRZ, DPSK, ODB, RZ
- Clock Driver for RZ and CS Pulse Carver
- Broadband ATE
- Instrumentation
- Military
- Aerospace
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| SDA7000 |
10 EA |
10 EA |
Standard 10 Piece Waffle Pack Shipping From Broomfield |
1+ |
$170.00 |
| |
|
|
|
25+ |
$141.79 |
| |
|
|
|
100+ |
$118.26 |
