LTC2165 - 16-Bit, 125Msps Low Power ADCs

The LTC®2165/LTC2164/LTC2163 are sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. They are perfect for demanding communications applications with AC performance that includes 76.8dB SNR and 90dB spurious free dynamic range (SFDR). Ultralow jitter of 0.07psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±2LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is 3.4LSBRMS.

The digital outputs can be either full rate CMOS, double data rate CMOS, or double data rate LVDS. A separate output power supply allows the CMOS output swing to range from 1.2V to 1.8V.

The ENC+ and ENC– inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

Features
  • 76.8dB SNR
  • 90dB SFDR
  • Low Power: 194mW/163mW/108mW
  • Single 1.8V Supply
  • CMOS, DDR CMOS, or DDR LVDS Outputs
  • Selectable Input Ranges: 1VP-P to 2VP-P
  • 550MHz Full Power Bandwidth S/H
  • Optional Data Output Randomizer
  • Optional Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Serial SPI Port for Configuration
  • 48-Pin (7mm × 7mm) QFN Package

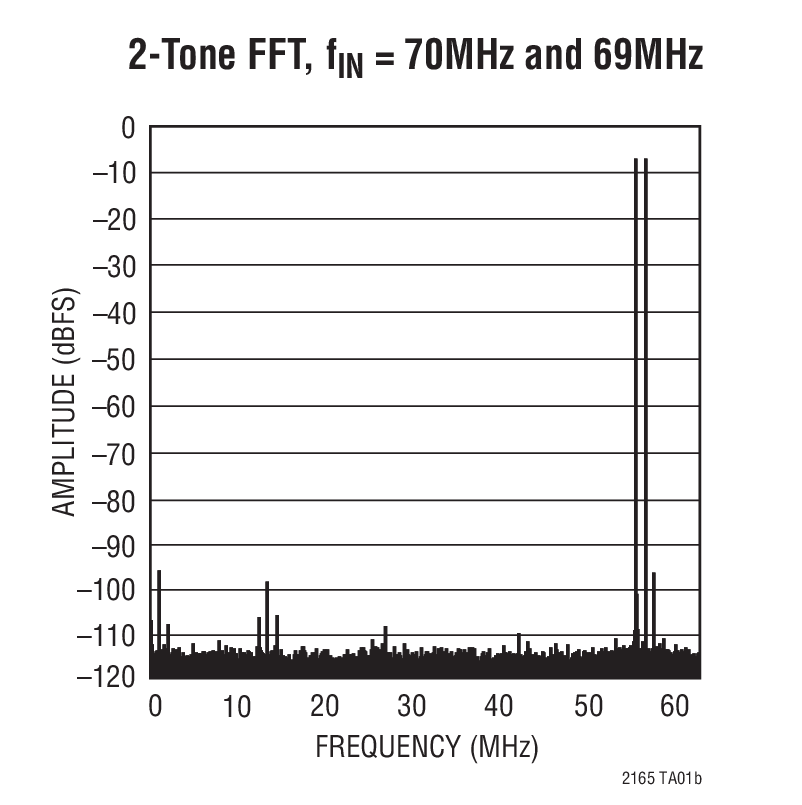

Typical Application

Applications
  • Communications
  • Cellular Base Stations
  • Software Defined Radios
  • Portable Medical Imaging
  • Multichannel Data Acquisition
  • Nondestructive Testing

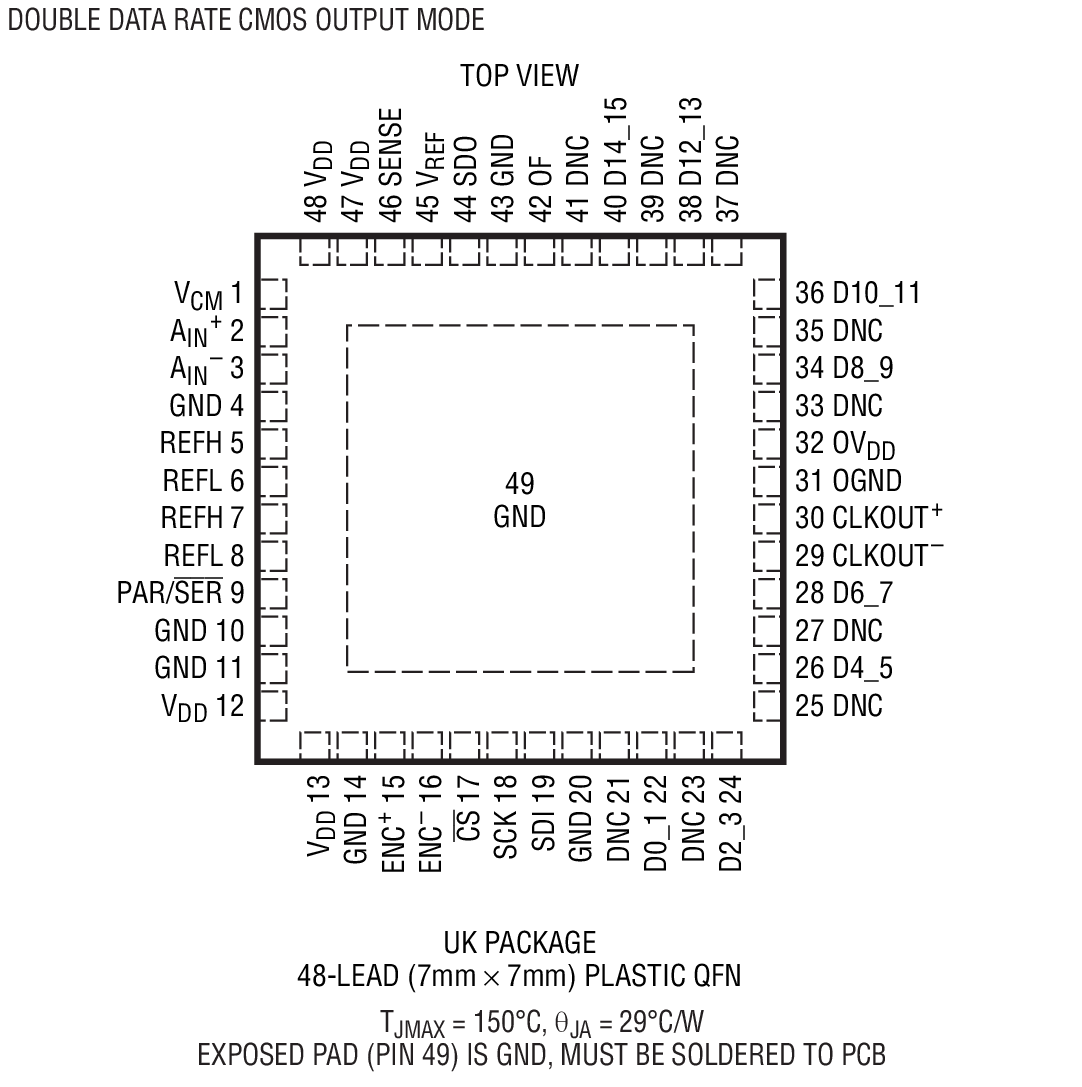

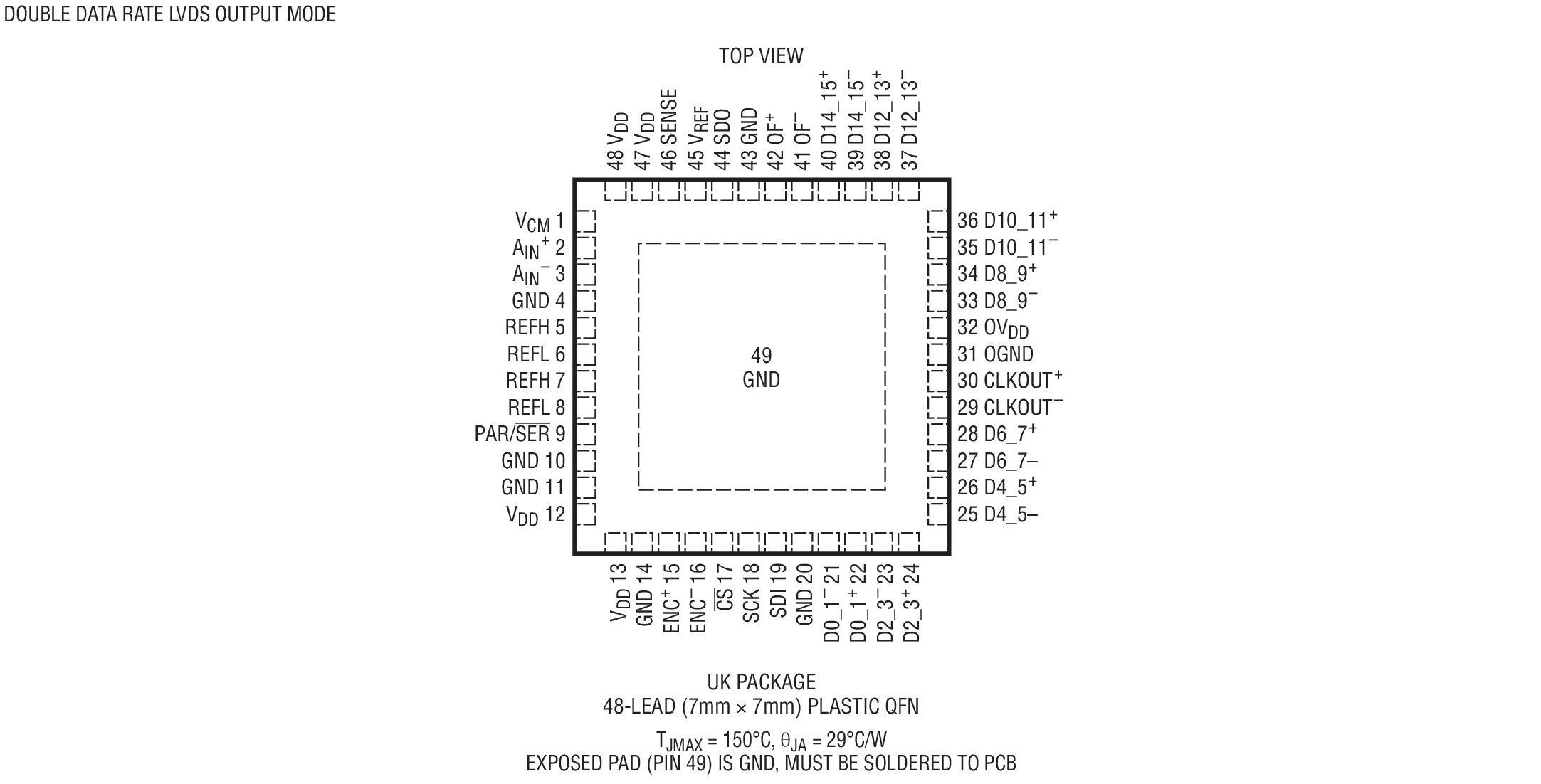

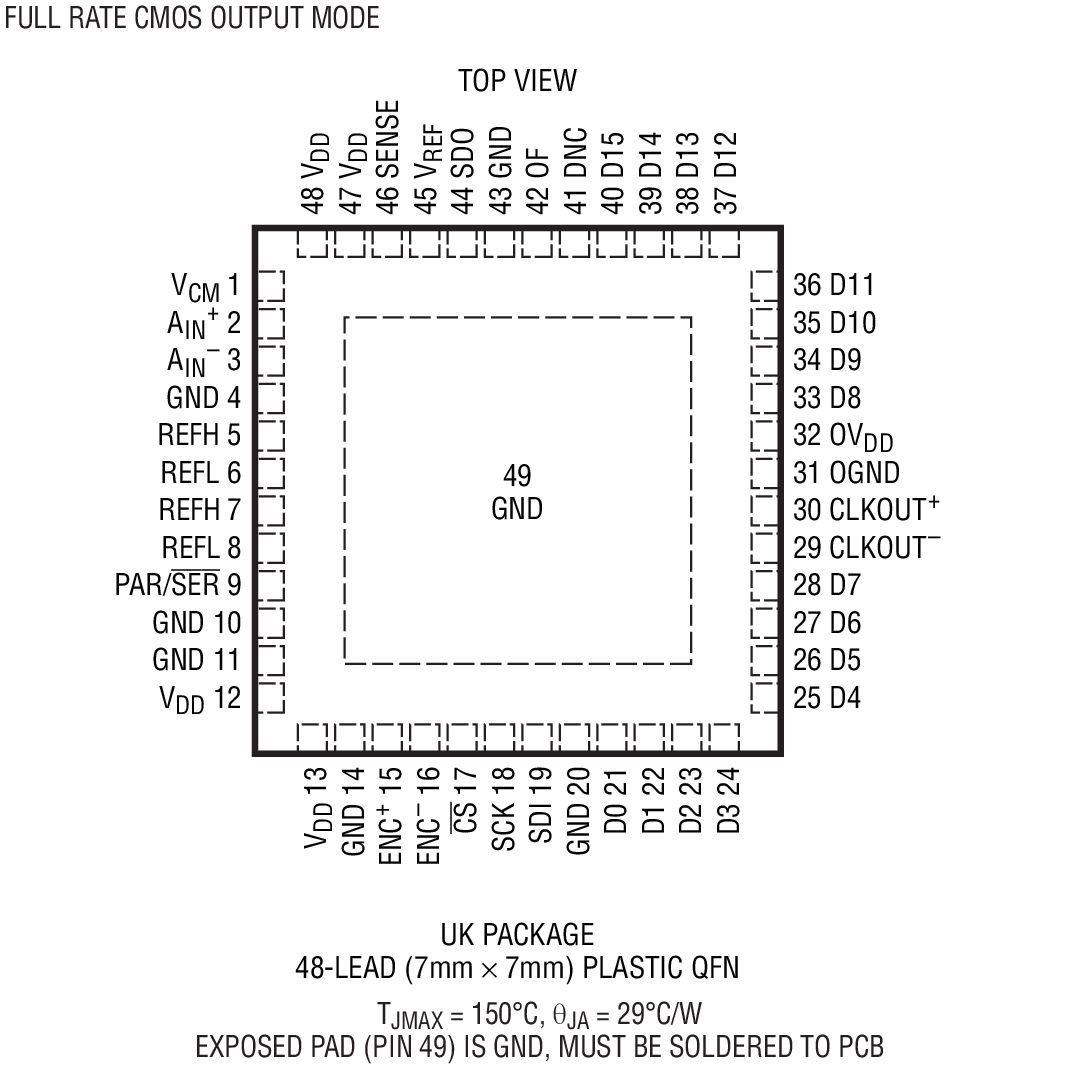

Packaging


Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC2165CUK#PBF7x7 QFN-48C$85.71$60.00
LTC2165CUK#TRPBF7x7 QFN-48C$60.06
LTC2165IUK#PBF7x7 QFN-48I$102.86$72.00
LTC2165IUK#TRPBF7x7 QFN-48I$72.06
Demo Boards
Part NumberDescriptionPrice
DC1762A-ALTC2165: 16-bit 125Msps ADC, LVDS Outputs, 5-140MHz, req DC890, LVDS_XFMR and DC1075$200.00
Companion Boards
Part NumberDescriptionPrice
DC1075AClock Divider board$50.00
DC890BUSB Data Acquisition Controller, for PScope Evaluation Kits (up to 250Mbps, CMOS/LVDS)$300.00
