LTC2206 - 16-Bit, 80Msps ADC

The LTC2207/LTC2206 are 105Msps/80Msps, sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals up to input frequencies of 700MHz. The input range of the ADC can be optimized with the PGA front end.

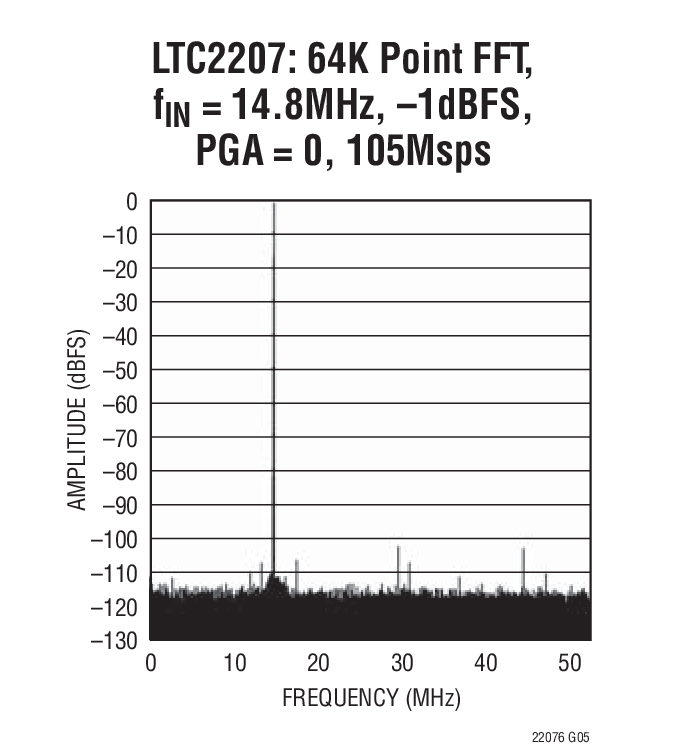

The LTC2207/LTC2206 are perfect for demanding communications applications, with AC performance that includes 78.2dB Noise Floor and 100dB spurious free dynamic range (SFDR). Ultralow jitter of 80fsRMS allows undersampling of high input frequencies with excellent noise performance. Maximum DC specs include ±4LSB INL, ±1LSB DNL (no missing codes) over temperature.

A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V.

The ENC+ and ENC– inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed with a wide range of clock duty cycles.

Features
  • Sample Rate: 105Msps/80Msps
  • 78.2dBFs Noise Floor
  • 100dB SFDR
  • SFDR >83dB at 250MHz (1.5VP-P Input Range)
  • PGA Front End (2.25VP-P or 1.5VP-P Input Range)
  • 700MHz Full Power Bandwidth S/H
  • Optional Internal Dither
  • Optional Data Output Randomizer
  • Single 3.3V Supply
  • Power Dissipation: 900mW/650mW
  • Optional Clock Duty Cycle Stabilizer
  • Out-of-Range Indicator
  • Pin Compatible Family  105Msps: LTC2207 (16-Bit), LTC2207-14 (14-Bit)  80Msps: LTC2206 (16-Bit), LTC2206-14 (14-Bit)  65Msps: LTC2205 (16-Bit), LTC2205-14 (14-Bit)  40Msps: LTC2204 (16-Bit)  25Msps: LTC2203 (16-Bit) Single-Ended Clock  10Msps: LTC2202 (16-Bit) Single-Ended Clock
  • 48-Pin 7mm x 7mm QFN Package

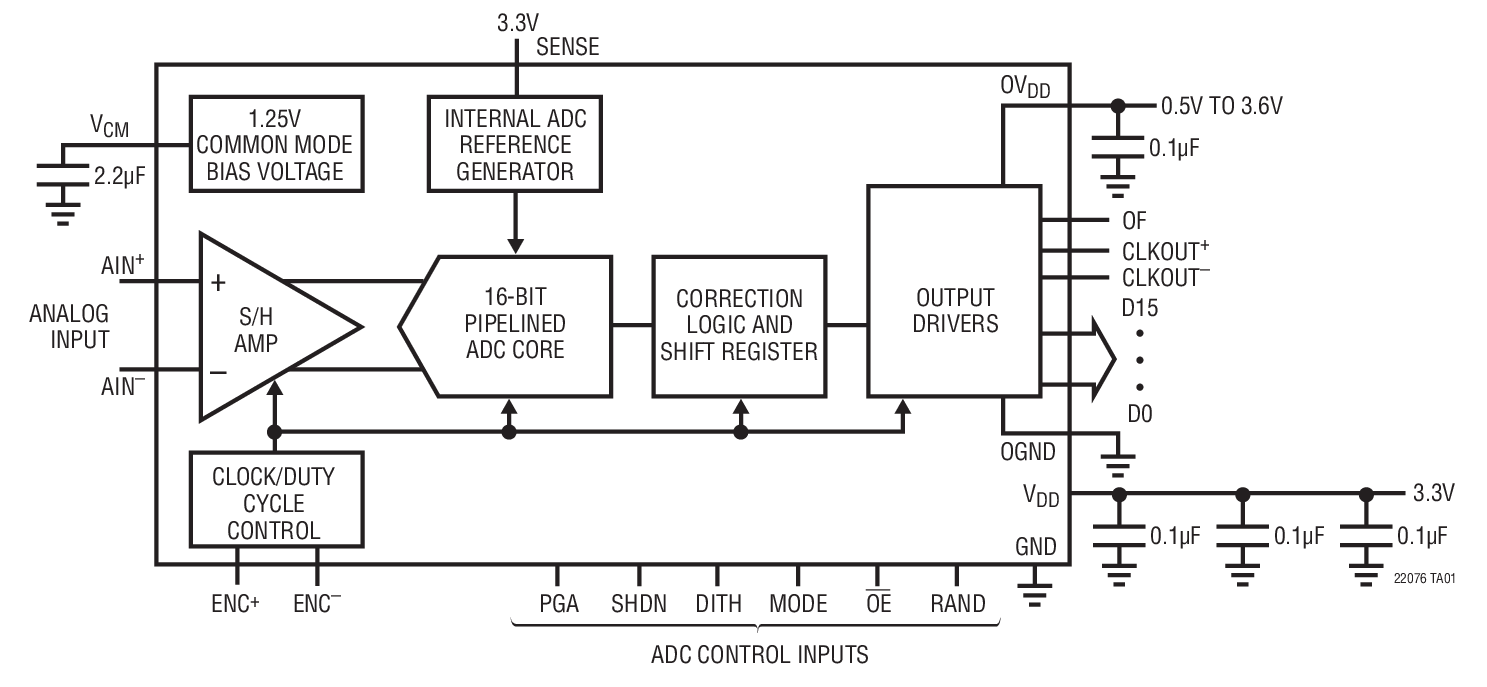

Typical Application

Applications
  • Telecommunications
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Imaging Systems
  • ATE

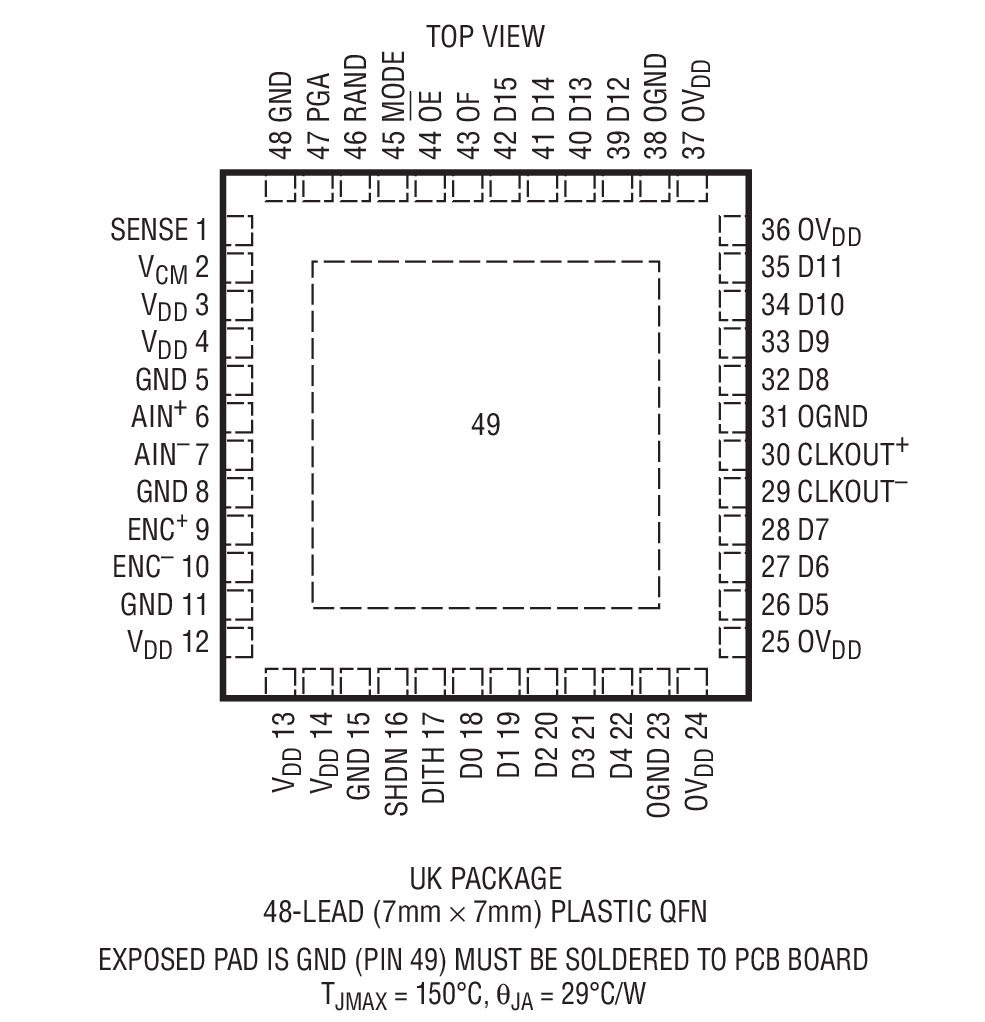

Packaging
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC2206CUK#PBF7x7 QFN-48C$69.04$48.33
LTC2206CUK#TRPBF7x7 QFN-48C$48.43
LTC2206IUK#PBF7x7 QFN-48I$82.86$58.00
LTC2206IUK#TRPBF7x7 QFN-48I$58.10
Demo Boards
Part NumberDescriptionPrice
DC918C-CLTC2206 | CMOS OUT, 80Msps, 16-Bit ADC, 1MHz< Ain < 70MHz, (req. DC718)$200.00
DC918C-DLTC2206 | CMOS OUT, 80Msps, 16-Bit ADC, 70MHz< Ain < 140MHz, (req. DC718)$200.00
DC919A-BLTC2206 | CMOS OUT, DC INPUT, 80Msps 16-Bit ADC, DC< Ain < 70MHz, (req. DC718)$200.00
Companion Boards
Part NumberDescriptionPrice
DC718CUSB Data Acquisition Controller, for PScope Evaluation Kits (<135Mbps)$300.00
