RH111 - Voltage Comparator

The RH111 is a general purpose voltage comparator. The RH111 offers maximum input offset voltage of 3mV and input offset current of 10nA with a typical response time of 200ns. The RH111 can operate from a single 5V supply to ±15V supplies and can drive up to 50mA loads referred to ground or either supply. A separate output Ground pin allows output signals to be isolated from analog ground.

The wafer lots are processed to the requirements of Linear Technology's in-house Class S flow to yield circuits usable in precision space applications.

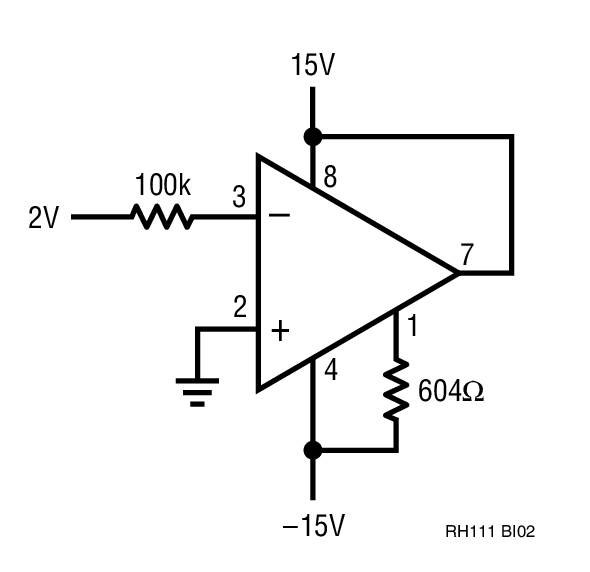

Features ABSOLUTE MAXIMUM RATINGS Supply Voltage (Pin 8 to Pin 4).....36V Output to Negative Supply (Pin 7 to Pin 4).....35V Ground to Negative Supply (Pin 1 to Pin 4).....30V Differential Input Voltage.....35V Voltage at Strobe Pin (Pin 6 to Pin 8).....5V Input Voltage (Note 1).....±15V Output Short-Circuit Duration 10 sec Operating Temperature Range (Note 2).....–55°C to 125°C Storage Temperature Range.....–65°C to 150°C Lead Temperature (Soldering, 10 sec).....300°C Typical Application

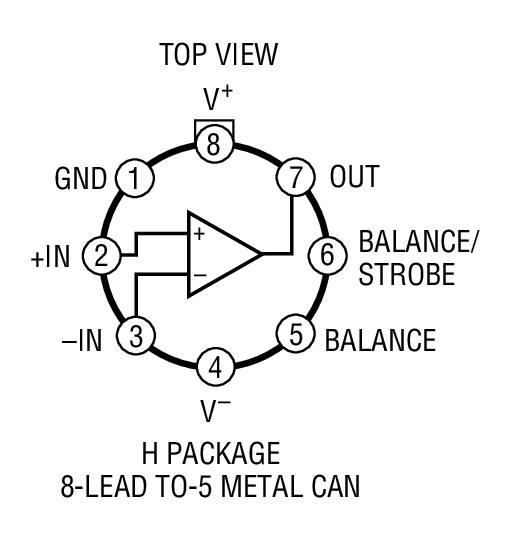

Packaging
